GRAPPLES

One Of The Most Versatile Attachments Is A Grapple Assembly.  With The Unlimited Amount Of
Materials To Handle, We Can Supply You With The Grapple Assy That Best Suits Your Needs

BROCHURES
 For More Detailed Information On Any Item, Scroll To The Bottom Of This Page To Open Any Brochure

 Click On Any Picture For A Larger View

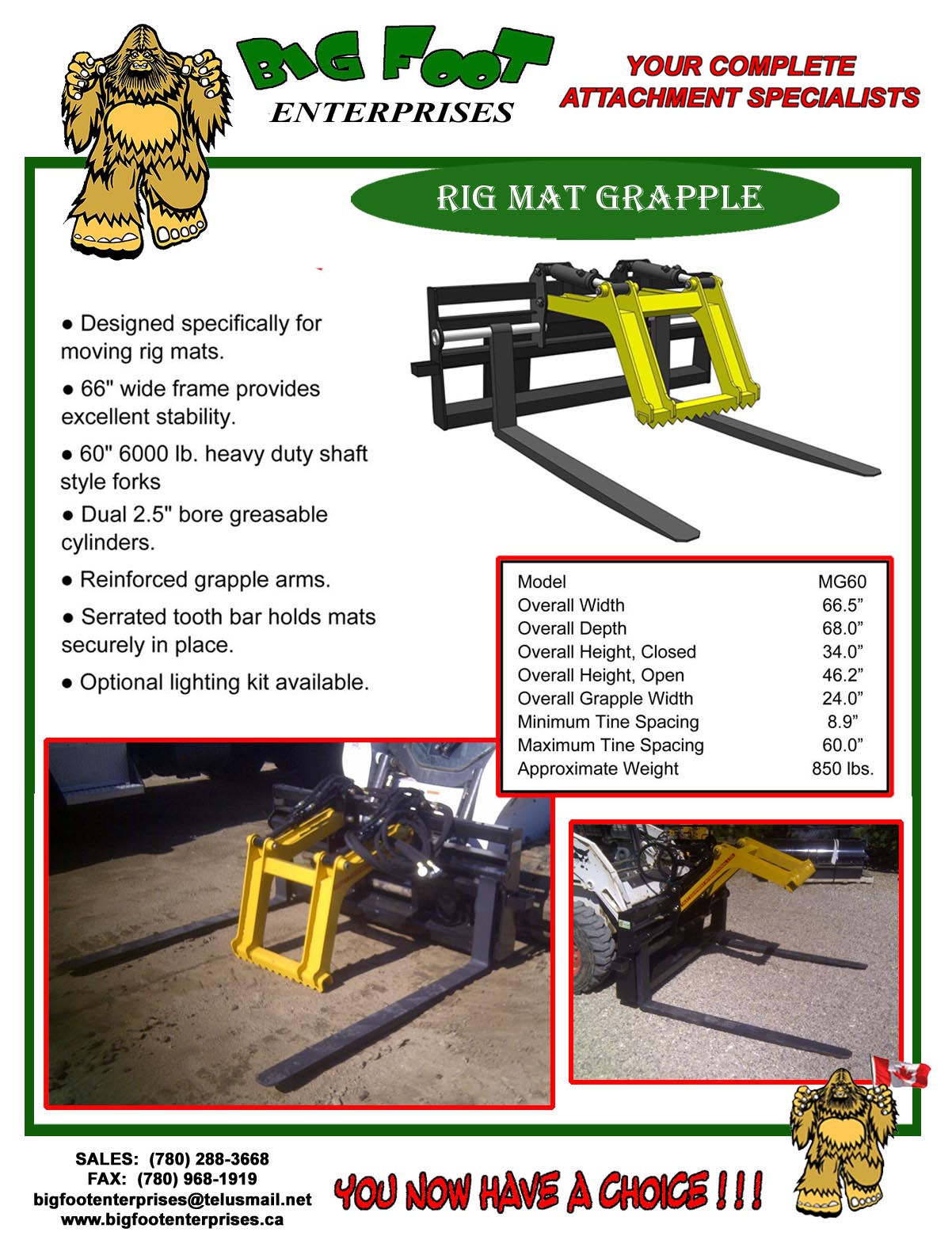

H.D. Rig Mat Grapple

Grapples/MatGrapple-4.jpg

Skid Steer Mount
Designed For Rig Mats
66" Wide Frame
60" - 6000 Lb Capacity Tines
Dual Cylinders
Serrated Tooth Bar

Rig Mat Grapple

Grapples/RigMatGrapple1.jpg

Skid Steer Mount
Designed For Rig Mats
50" Wide Frame
60" Tines - 4,000 Lb Capacity Tines
Single Cylinder
Serrated Tooth Bar

Pipe Grapple

Grapples/PipeGrapple-TwoCyl-1.jpg

Skid Steer Mount
Dual Arms Clamp Down Holding
The Pipe In Place
6,200 Lb Capacity - 48" Tines
2-Cyl & 4-Cyl Models Available

Log Grapple

Grapples/LogGrapple-1.jpg

Skid Steer & Tractor Mounts
5,500 & 7,500 Lb Capacity
42"   48"   54"   60" Tines Available
Arms Close To 7 1/2" Opening
Arms Fully Open For Pallet Fork

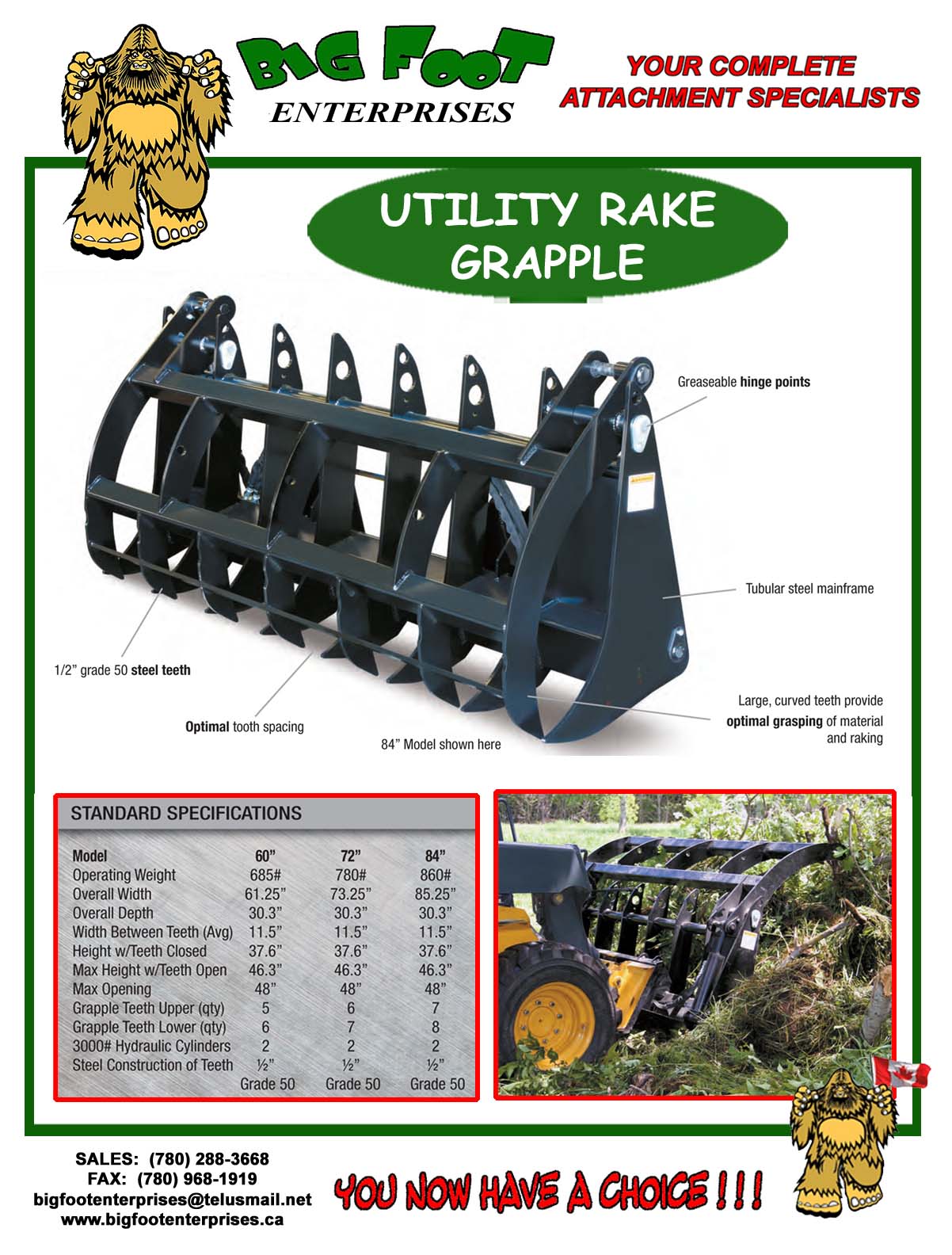

Utility Rake Grapple

Grapples/Grapple-UtilityRake.jpg

Skid Steer Mount
60" - 72" - 84" Widths
1/2" Grade 50 Steel Teeth
11.5" Width Between Teeth
Opens To 48"
Dual 3000 Lb Cylinders

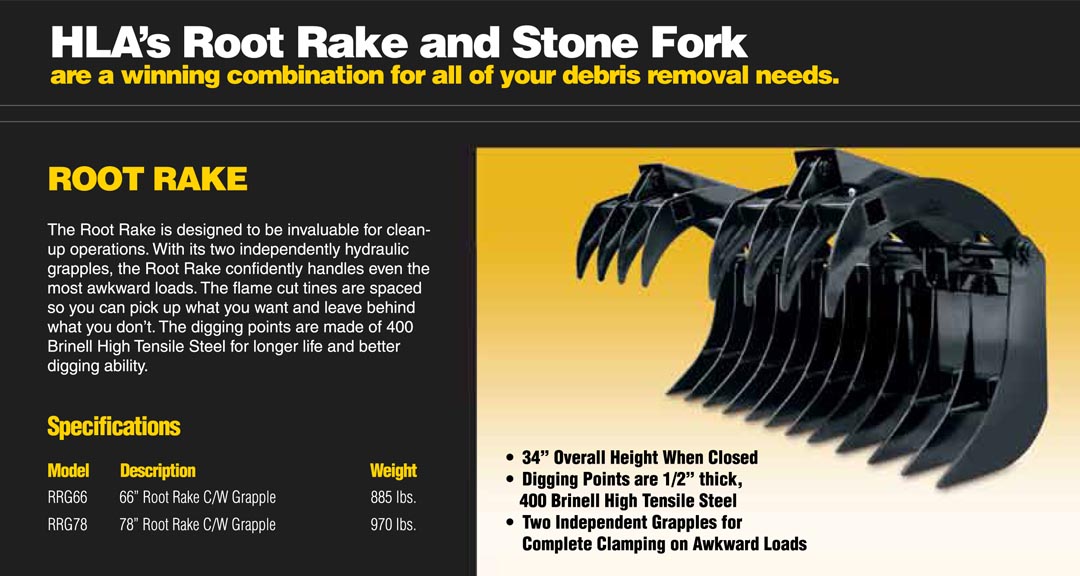

HD Root Rake Grapple

Grapples/RootRakeGrapple-1.jpg

Skid Steer, Tractor,
   & Loader/Backhoe Mounts
H.D. Construction
Independent Grapples
Points-1/2" Thick-400 Brinell Steel
7 3/8" Tine Spacing

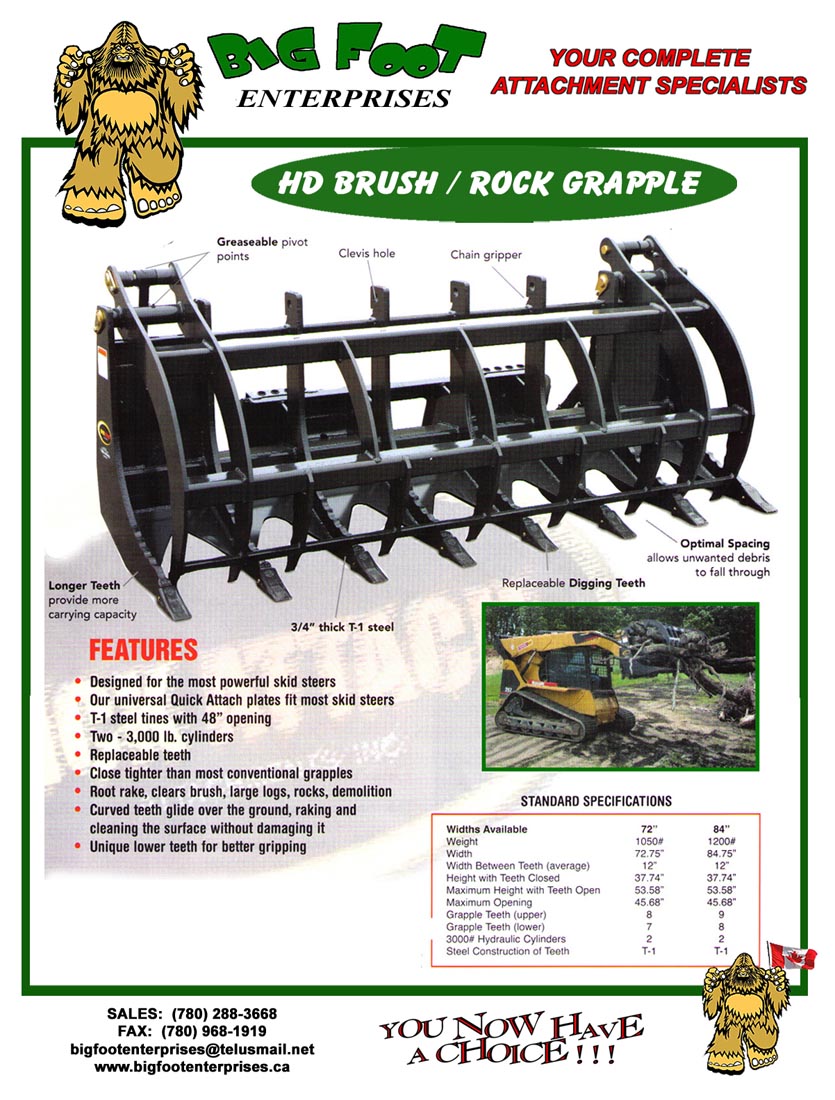

HD Log/Brush Grapple

Grapples/Grapple-HDLogBrush.jpg

Skid Steer Mount
72" - 84" Widths
Bottom Teeth - 3/4" T-1 Steel
Replaceable HD Cast Teeth
10.5" Width Between Teeth
Opens To 46"
Dual 3000 Lb Cylinders

Root/Brush Grapple

Grapples/BrushGrapple.jpg

Skid Steer Mount
H.D. Models - 66" & 72"
   1/2" Steel Construction
   8" Tine Spacing
   Dual Grapples open 32"
Extreme Models - 72" to 84"
   1/2" Steel Construction
   Dual Grapples open 39"
   Approx 8" Spacing

 Click On Any Picture For A Larger View

Rock Bucket Grapple

Grapples/RockBucketGrapple-4a.jpg

Skid Steer Mount
66" to 84" Widths
Individual Grapples
3" Spacing On Bucket

HD Rock Bucket Grapple

Grapples/StoneForkGrapple.jpg

Skid Steer, Tractor and
      Loader Backhoe Mounts
77" - 84" - 92" Widths
HD Single Grapple c/w
      Dual Cylinders
Round Bar Construction
2 5/8" Spacing On Bucket

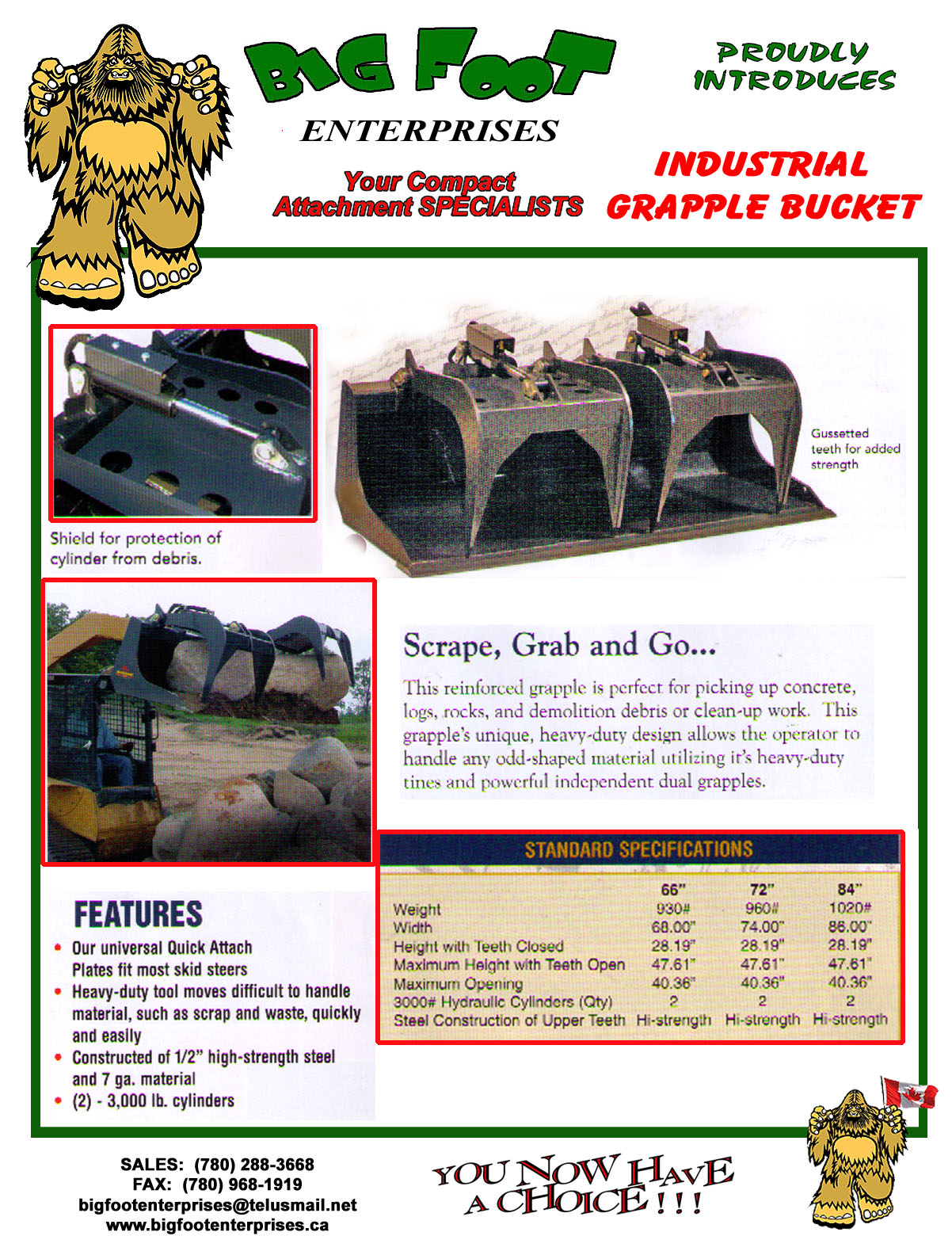

HD Bucket Grapple

Grapples/BucketGrapple-HD.JPG

Skid Steer or Tractor Mounts
54" to 78" Widths
H.D. Construction
Dual HD Grapples
Cylinder Protectors
Cutaway Sides - Uneven Loads

HD Tine Grapple

Grapples/GrappleTine-HD.jpg

Skid Steer Mount
66" to 84" Widths
6" Tine Spacing
Dual HD Grapples
Cylinder Protectors
39" Conus II H.D. Tines

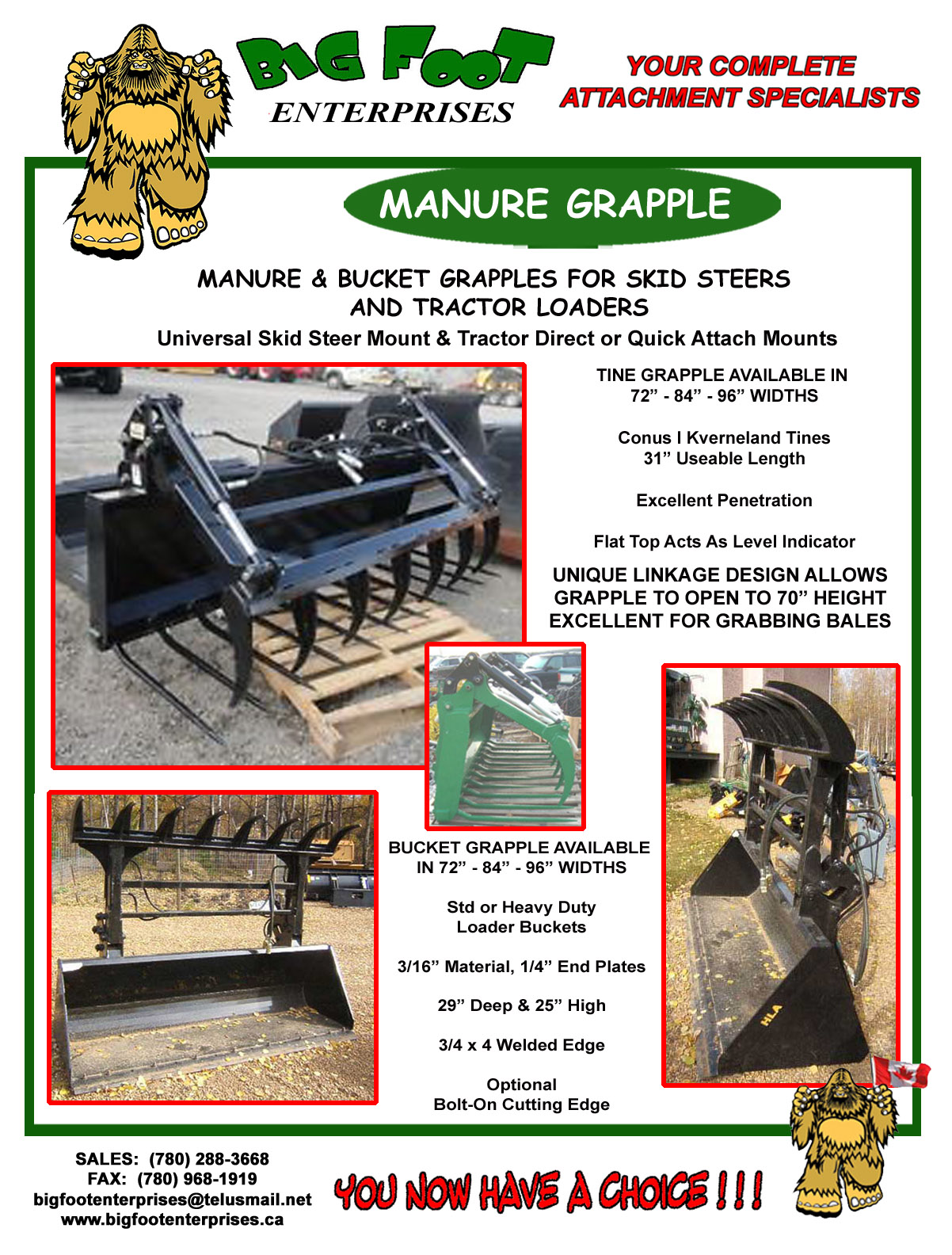

Manure Grapple

Grapples/GrappleUtility-1.jpg

Skid Steer & Tractor Mounts
72" - 84" - 96" Widths
Approx 8" Centers On Tines
35" Kverneland Conus 1 Tines
Grapple Opens To Approx 58"
Spear and Easily Grab Round Bales
Dual Cylinders

Grapple Assy Only

Grapples/GrappleOnly-Utility.jpg

Grapple Assy Can Be Fitted
To Manure Forks or Buckets.
Dual Cylinders & Mounts
66" - 72" - 84" Wide Grapples

Grapple Assy - Single Arm

Grapples/Grapple-SingleArm.jpg

Single Arm Grapple Assy
Clamps To Any Class II Pallet
Fork Frame - 16" Rail Height
c/w Hydraulic Cylinder

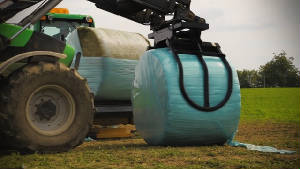

Bale Grapple

Grapples/Grapple-RoundBale2.JPG

Skid Steer & Tractor Mounts
Round Bale Model Opens71"
Square Bale Model Opens - 84"
Designed To Gently Handle Bales
c/w Hydraulic Cylinder

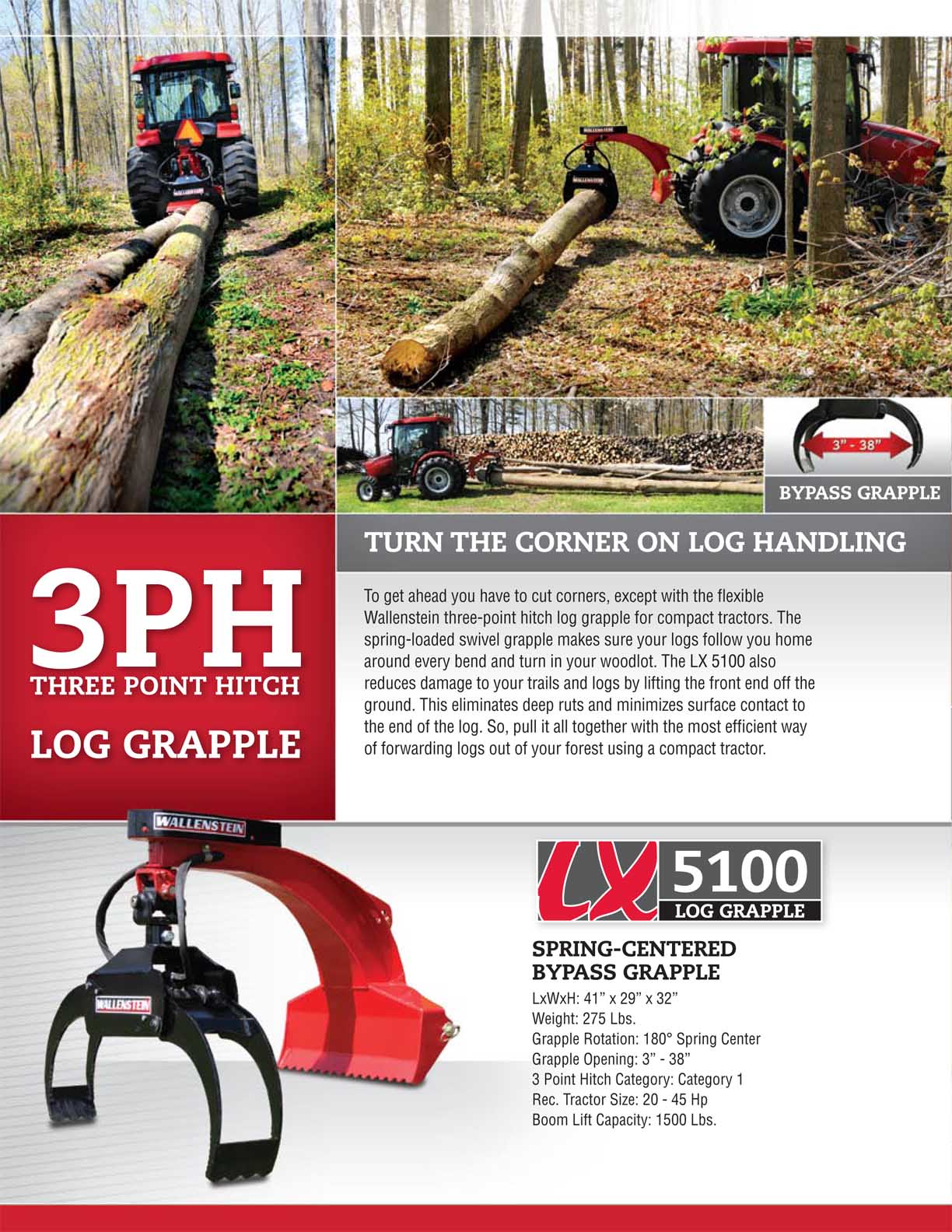

Log Grapple - 3 Pt Hitch

Grapples/LX5100.jpg

Tractor 3 Pt Hitch Model
Grapple Opening:  3" to 38"
180 Degree Spring Center
Rotation On Grapple

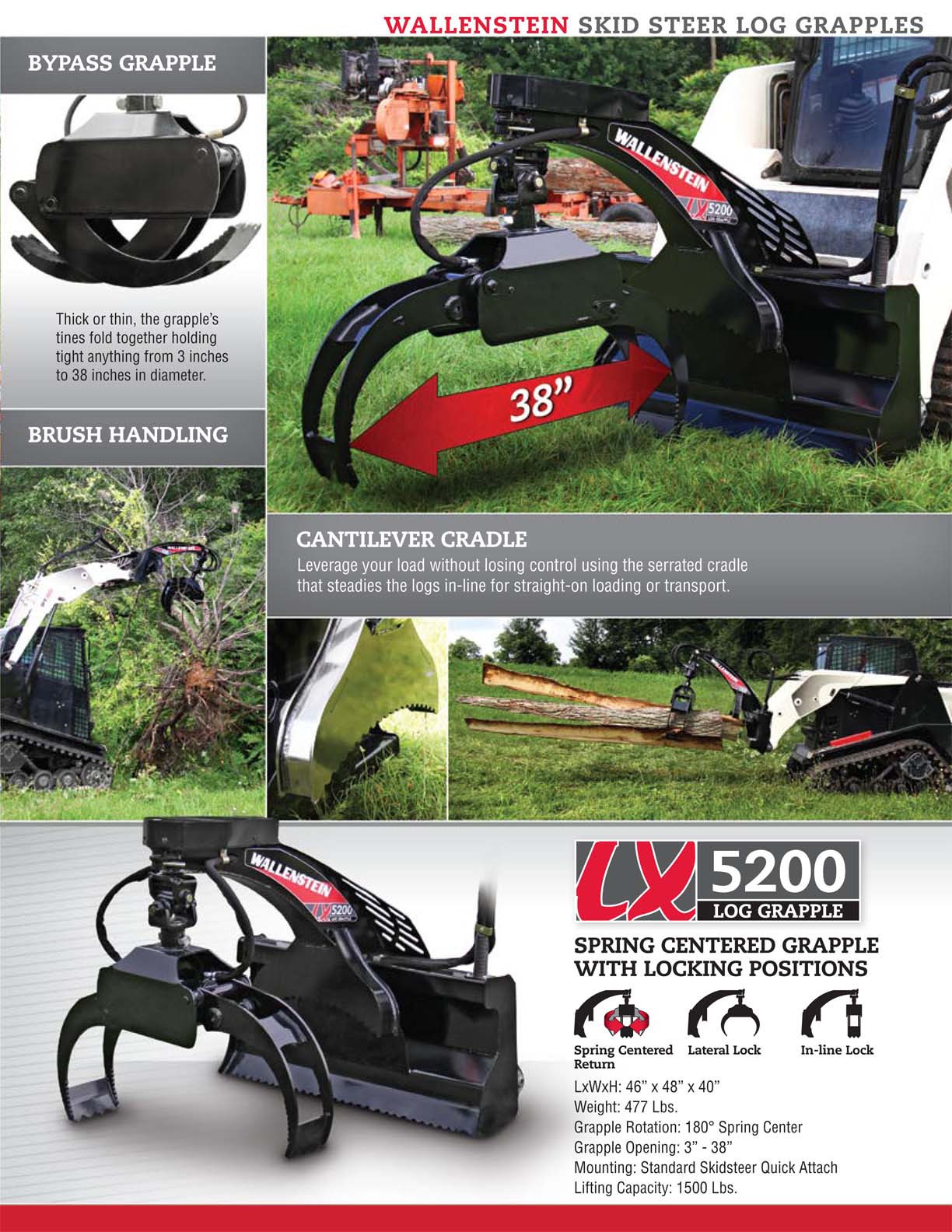

Log Grapple - Skid Steer

Grapples/LX5200.jpg

Skid Steer Mount
Grapple Opening:  3" to 38"
2 Models:
LX5200 -180 Degree Spring Center
            Rotation On Grapple
LX5300 -360 Degree Continuos
            Rotation On Grapple

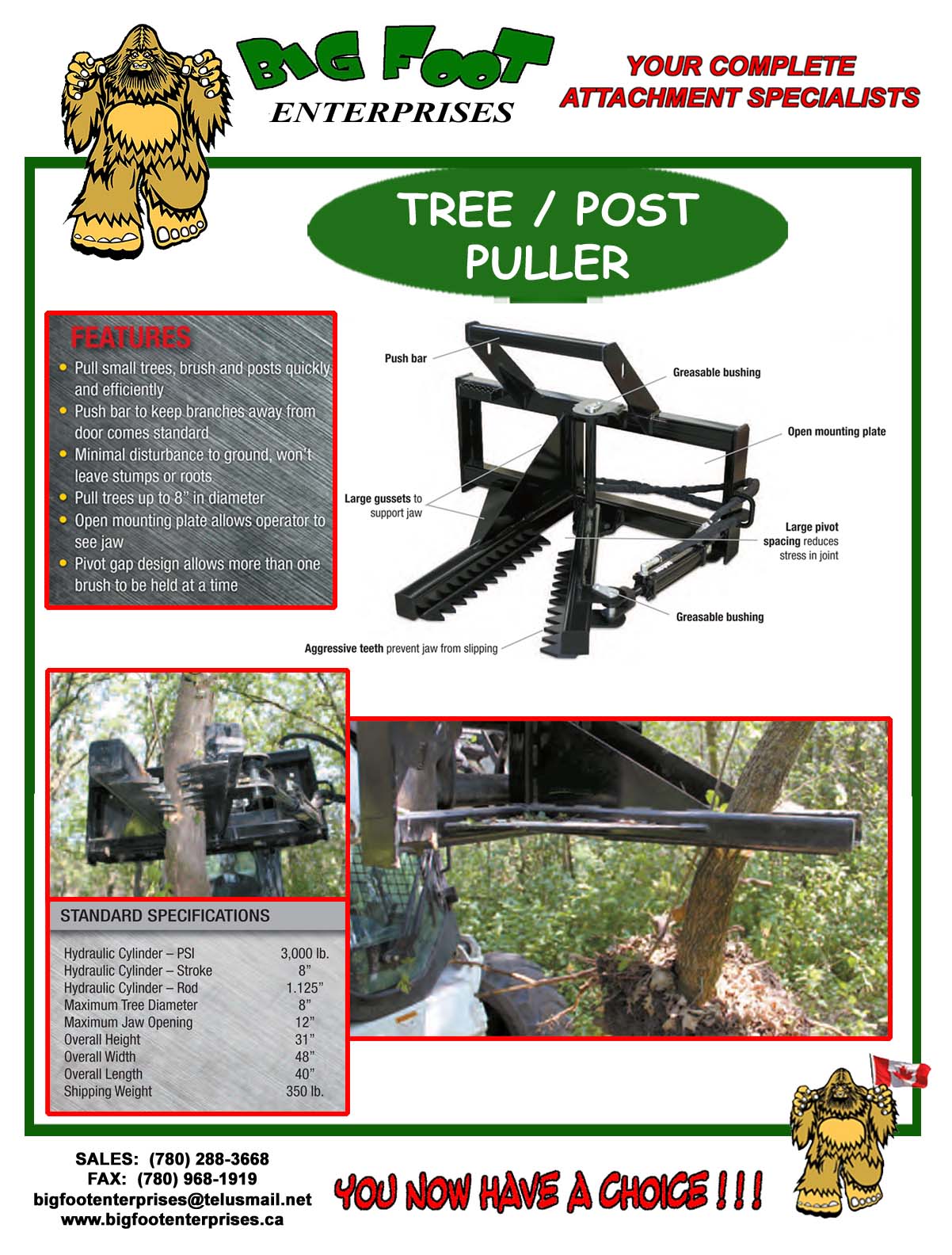

Tree & Post Puller

Grapples/TreePuller-b.jpg

Skid Steer Mount
Excellent Visibility
Remove Trees & Posts to 8"
3000 Lb psi Cylinder
Maximum Jaw Opening- 12"

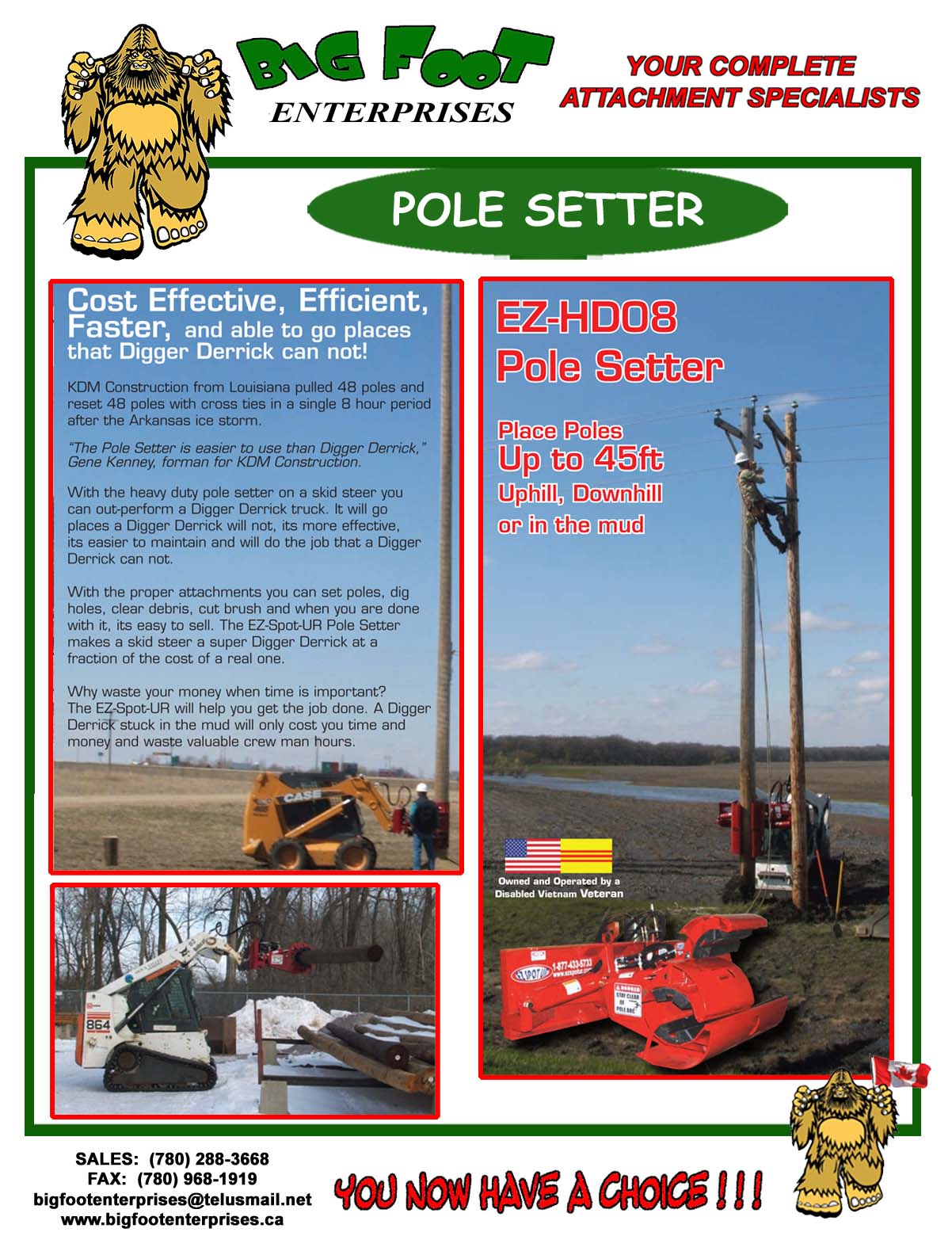

Pole Setter

Grapples/PoleClaw-2.jpg

Skid Steer Mount
Easily Position And Place
Poles & Posts Perfectly
Into Position.  Rubber Inserts
Protect Poles.  Hydraulic Rotation
Allows You To Pick Up & Rotate

BROCHURES:  CLICK ON THE TITLE OF INTEREST AND THIS ITEM WILL OPEN IN A NEW WINDOW
Print or TO COPY & SAVE: Right Click, Save Target As, and Save to a Folder Of Your Choice

HD Rig Mat Grapple

Rig Mat Grapple

Pole Setter Grapple

Rock Bucket Grapple Brochure

Pipe Grapple

HD Bucket Grapple

Tree Puller Grapple

Log Grapple - Tractor - LX5100

Log Grapple - Skid Steer - LX5200

Log Grapple- Skid steer - LX5300

Manure Grapple

HD Root Rake Grapple

Root & Brush Grapples

HD Log / Brush Grapple

Utility Rake Grapple
