FORESTRY ATTACHMENTS

IN THE FORESTRY MARKET, WE HAVE WHAT YOU NEED TO PLANT, CUT,
CLEAR OR TRANSPORT FOR YOUR COMPACT FORESTRY NEEDS
-------------------------------------------------------

For These Forestry Attachments Click On The One That Interests You Or On The Page At Left

GRAPPLESClick Here        MOWERSClick Here       MULCHERSClick Here      TREE SPADESClick Here      WOOD SPLITTERS/CHIPPERSClick Here

  --------------------------------------

BROCHURES
 For More Detailed Information On Any Item, Scroll To The Bottom Of This Page To Open Any Brochure

  --------------------------------------

Click On Any Picture For A Larger View

Videos/Processor1.jpg

Processor Video
Click On The Picture Above  or
 "Click Here"
To See The Processor In Action


Click "PROCESSORE BROCHURE" To See Specs

PROCESSOR BROCHURE

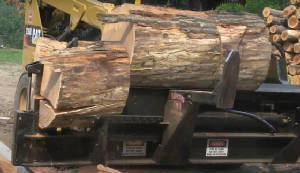

Skid Steer Fire Wood Processor

One Man Operation From The Comfort Of Your
Skid Steer Cab.  Perfect For Light Commercial-Residential

HP140B Wood Processor
- Weight 1450 Lbs       Self Loading
- Minimum 15 GPM Flow Rate Required
- Minimum 2800 PSI Required
- Case Drain is Required
- Manually Adjustable 4-Way Wedge  {6-Way Wedge - Optional }
- 55” Width     - 51” Height
- 100” Closed Length, 122” Open Length
- 15” Maximum Log Diameter
- 8’ – 12′ Variable Log Length
- 8" -  22” Maximum Cut Log Length
- H.D. Harvester Chain and Sprocket
- Automatic Oiler
- H.D. Splitter Cylinder
- Universal Quick Attach Skid Steer Mount
- Joystick Electrical Control c/w Wiring Harness
- Average Log Processed in under two minutes
- Process directly into a truck or trailer


Forestry/Processor-3.jpg
Forestry/Processor-1.jpg

  ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Click On Any Picture For A Larger View

Forestry/S18-S24.jpg

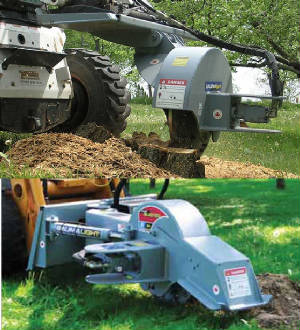

Stump Grinder
Skid Steer Models

These Proven Stump Grinders
Will Easily Grind Up Any Unwanted
Stumps You Can Throw At It
Carbide Tipped Teeth Allow You
To Grind 10" Below Ground

3 Models To Choose
S18:  Direct Drive-Lo Flow Hyd. 12 to 27 gpm
S24:  Hyd Swing - Hi Flow Hyd   20 to 32 gpm

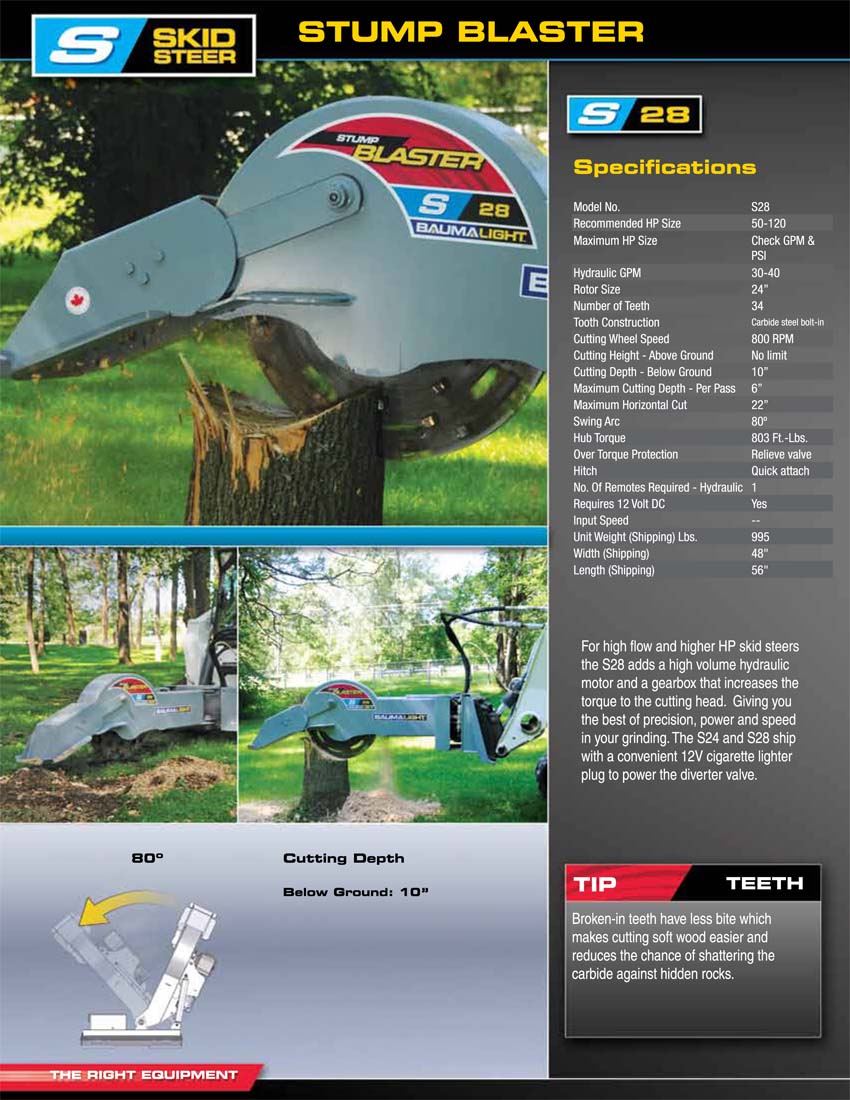

S28:  Hyd Swing - Hi Flow Hyd   30 to 40 gpm

Stump Grinder Videos

To See The S18 & S24
Stump Grinders In Action,
Go To Our Video Page  "Click Here"

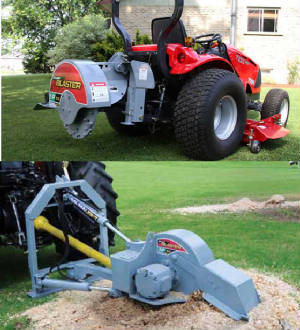

Forestry/1P24-3P24.jpg

Stump Grinder
Tractor 3 Pt Hitch Models

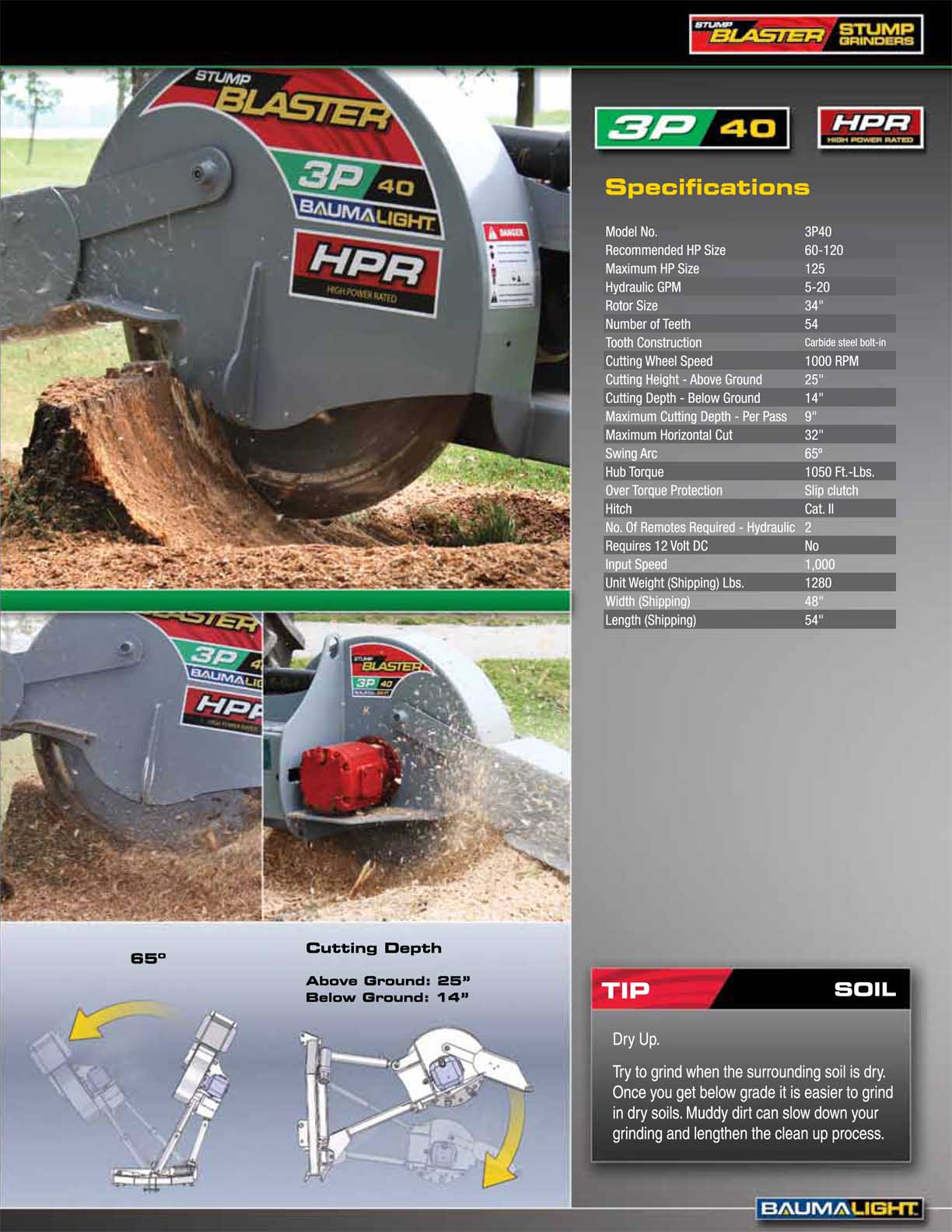

The 540 PTO Driven Stump Grinders
Are Designed For 3 Pt Hitch Mount
Onto Tractors 20-85 HP.  The 3P40
Model Requires 60-120 HP With A
1000 rpm. These Models Also Feature
Carbide Tipped Teeth Along With HD
Rugged Gear Boxes.

4 Models To Choose
1P24:  20 - 45 HP   24" Wheel    6" Below Ground
3P24:  30 - 50 HP   24" Wheel    8" Below Ground
3P34:  50 - 80 HP   34" Wheel    10" Below Ground
3P40:  60-120 HP   40" Wheel    14" Below Ground


PTO Stump Grinder Video

To See The Tractor PTO
Stump Grinders In Action,
Go To Our Video Page  "Click Here"

 Click On Any Picture For A Larger View

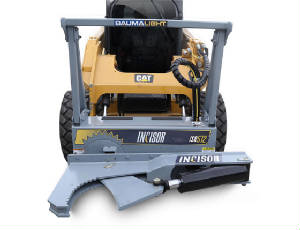

Forestry/ISR12-b.jpg

Tree Shear - Skid Steer

Powerful Tree Shear Easily Cuts Up To 12" Trees
8", 10" or 12" Models Available For Horizontal
        or Horizontal & Vertical Models
Horizontal Close To Ground Cutting
Hydraulic Head Rotator Turns 90 Deg.
       For Vertical Cutting
Brush Guard/Pushbar Keeps The
       Tree In Front Of You

VIDEO: To See The Tree Shear In Action,
Go To Our Video Page  "Click Here"

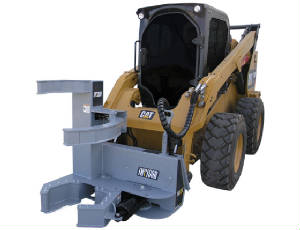

Forestry/ISR510G-c.jpg

Tree Shear - Skid Steer

Powerful Tree Shear With Grabber Clamp
8", 10" or 12" Models Available
Horizontal Close To Ground Cutting
Powerful Grabber Holds Tree In Place

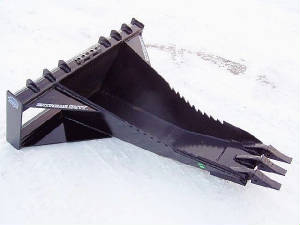

Forestry/stumpbucket1.jpg

Stump Bucket - Skid Steer

Extreme Duty Stump Bucket Reaches
Under The Stump To Loosen & Cut Roots.
Made From 1/2" Steel is 56" Long
With 12" Wide Tip.  The Cutting Edge
Is 1" x 8" With 3 HD Cast Teeth.
Many Uses Include Digging Footers,
Trenches as Well As Removing Concrete

Grapples/TreePuller-b.jpg

Tree & Post Puller

Skid Steer Mount
Excellent Visibility
Remove Trees & Posts to 8"
3000 Lb psi Cylinder
Maximum Jaw Opening- 12"



Forestry/SkiddingWinch.jpg

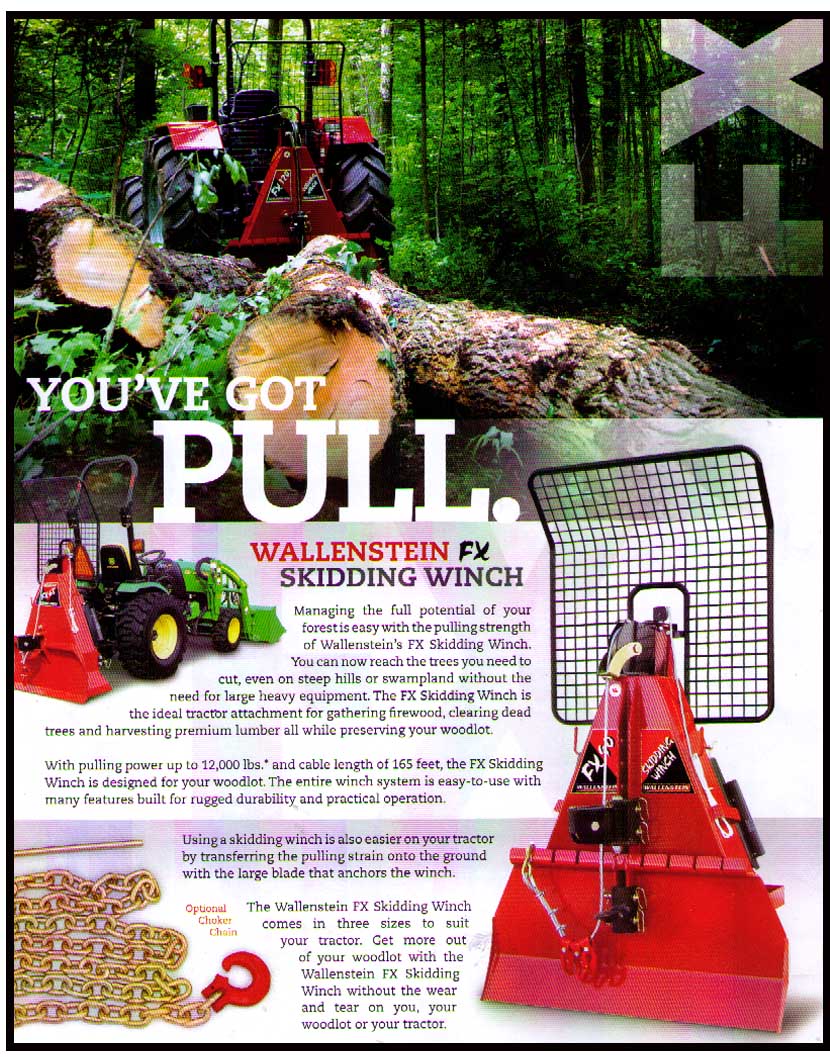

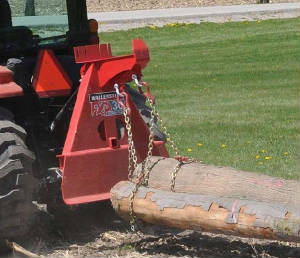

Skidding Winch - 3 Pt Hitch

With 3 Sizes Available, You Can Easily
Gather Trees & Logs For Firewood or
Simply Clearing Dead Trees.

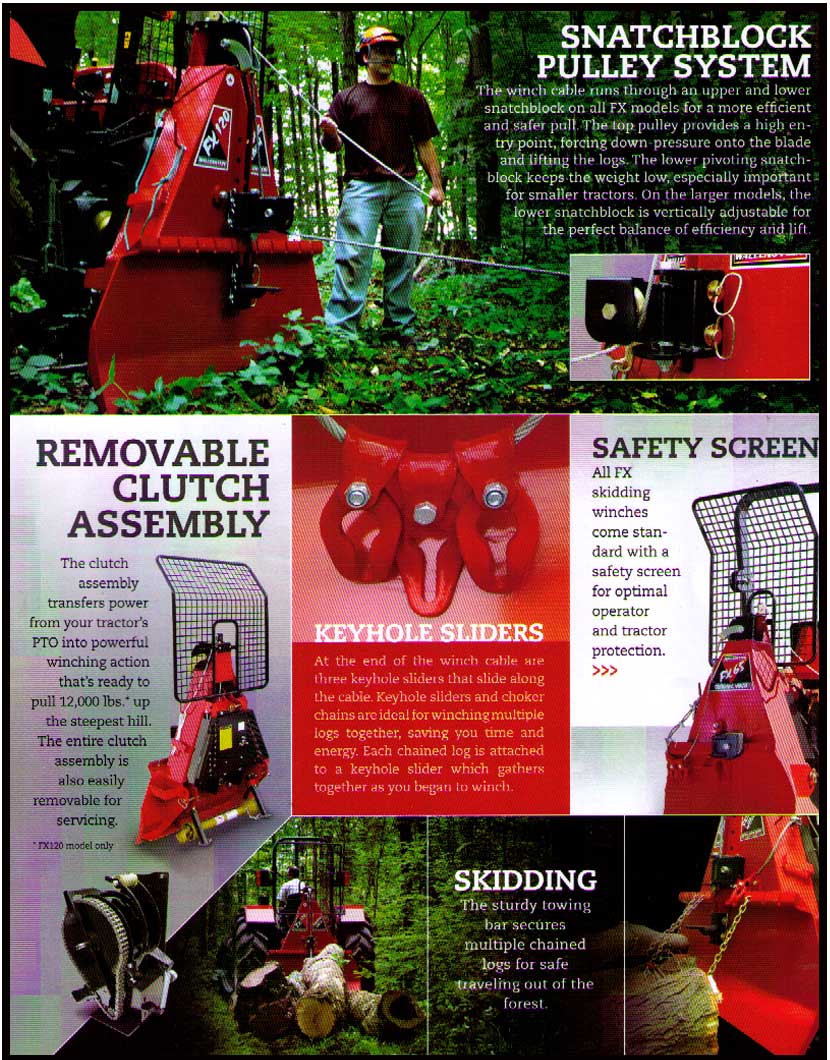

Features a Snathblock Pulley System,
Removeable Clutch, & Safety Screen.
3 Models From 6,500 Lb to 12,000 Lb
Pulling Capacity

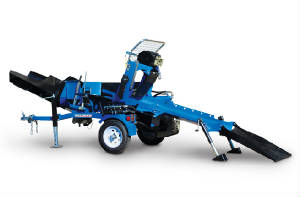

Forestry/WoodProcessor1.jpg

Wood Processor

Excellent System For The Part
Time Firewood Business.
Available In 3 Pt Hitch or Self
Contained Trailer Models.  Features
Include Easy Controls, Easy Load
Ramp, High Strength Synthetic Rope,
4-way or 6-way Wedge, Adjustable
Chute, Compact Transport Design

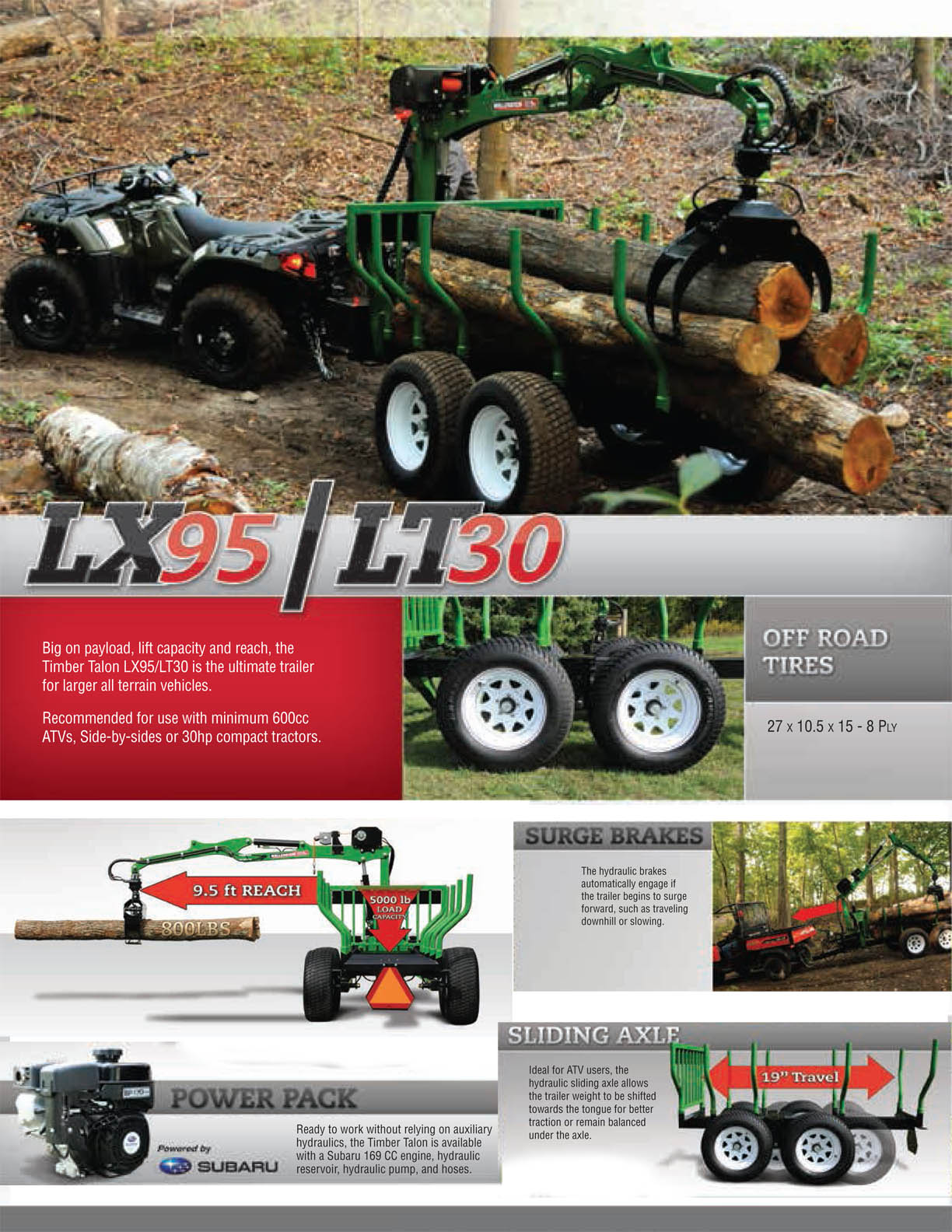

Forestry/LogTrailerPic.jpg

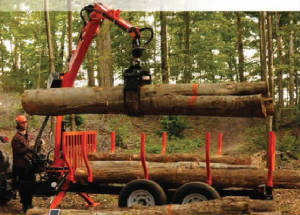

Log Trailer

Now You Can Easily Outfit Your
Wood Transport Behind ATV's,
Small to Large Tractors or
Behind Your Truck

Models: LX95/LT30  LX115/LT60
Available In Off Road or Highway
Pkge. Self Contained Systems
Feature Subaru Engines &
Hyd. Packs Along With 3
60 Degree Rotating Grapples

BROCHURES:  CLICK ON THE TITLE OF INTEREST AND THIS ITEM WILL OPEN IN A NEW WINDOW
Print or TO COPY & SAVE: Right Click, Save Target As, and Save to a Folder Of Your Choice

Log Trailer LX95/LT30

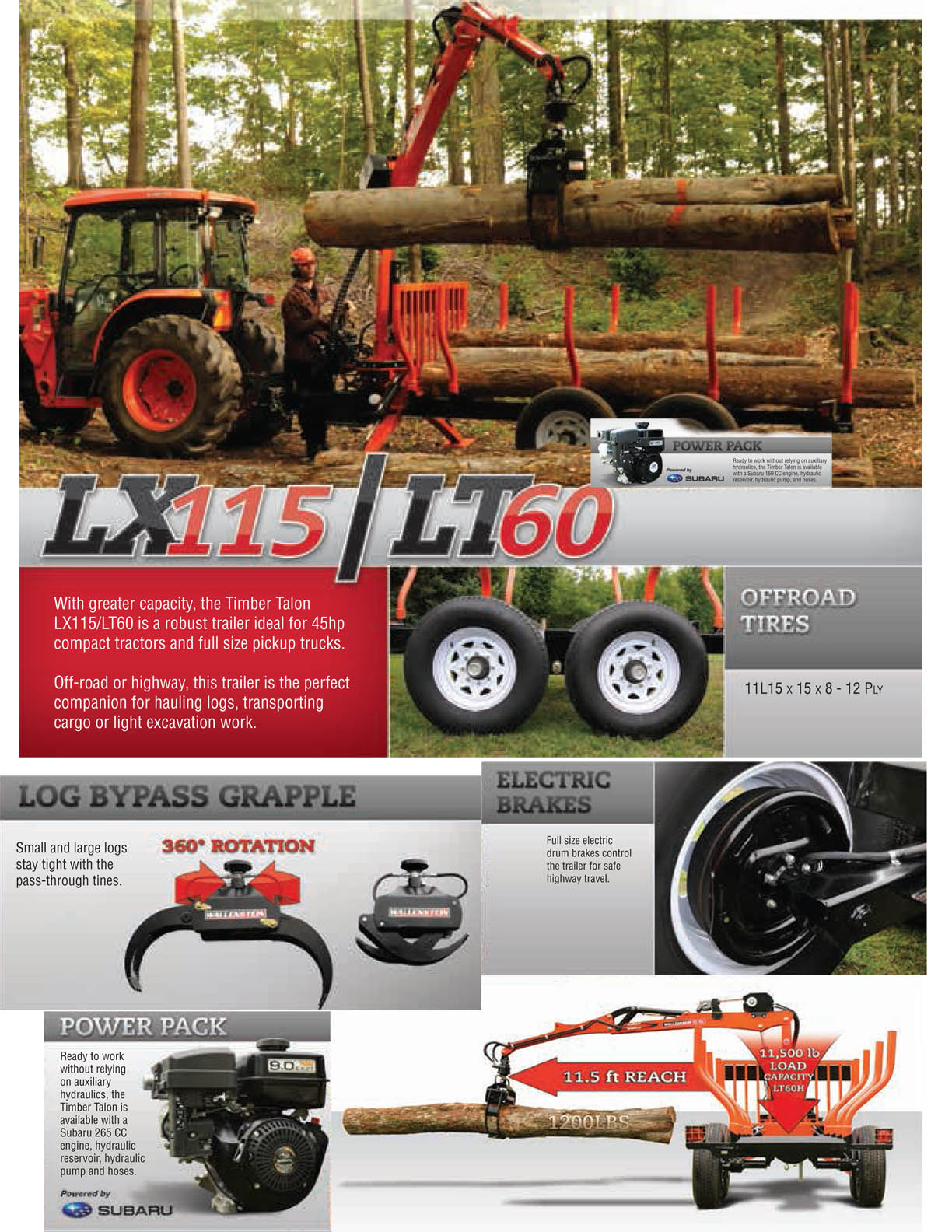

Log Trailer LX115/LT60

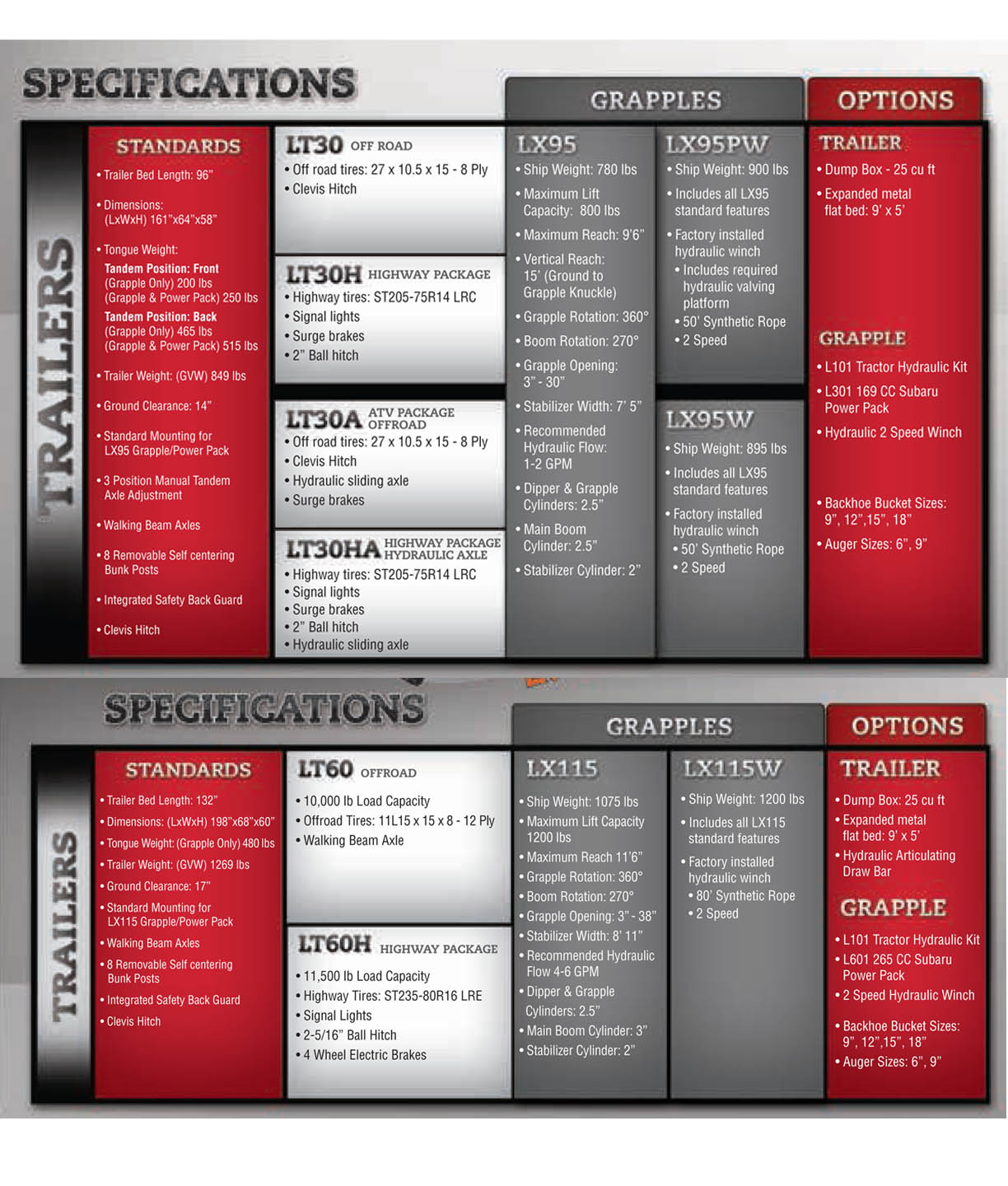

Log Trailer - Specs

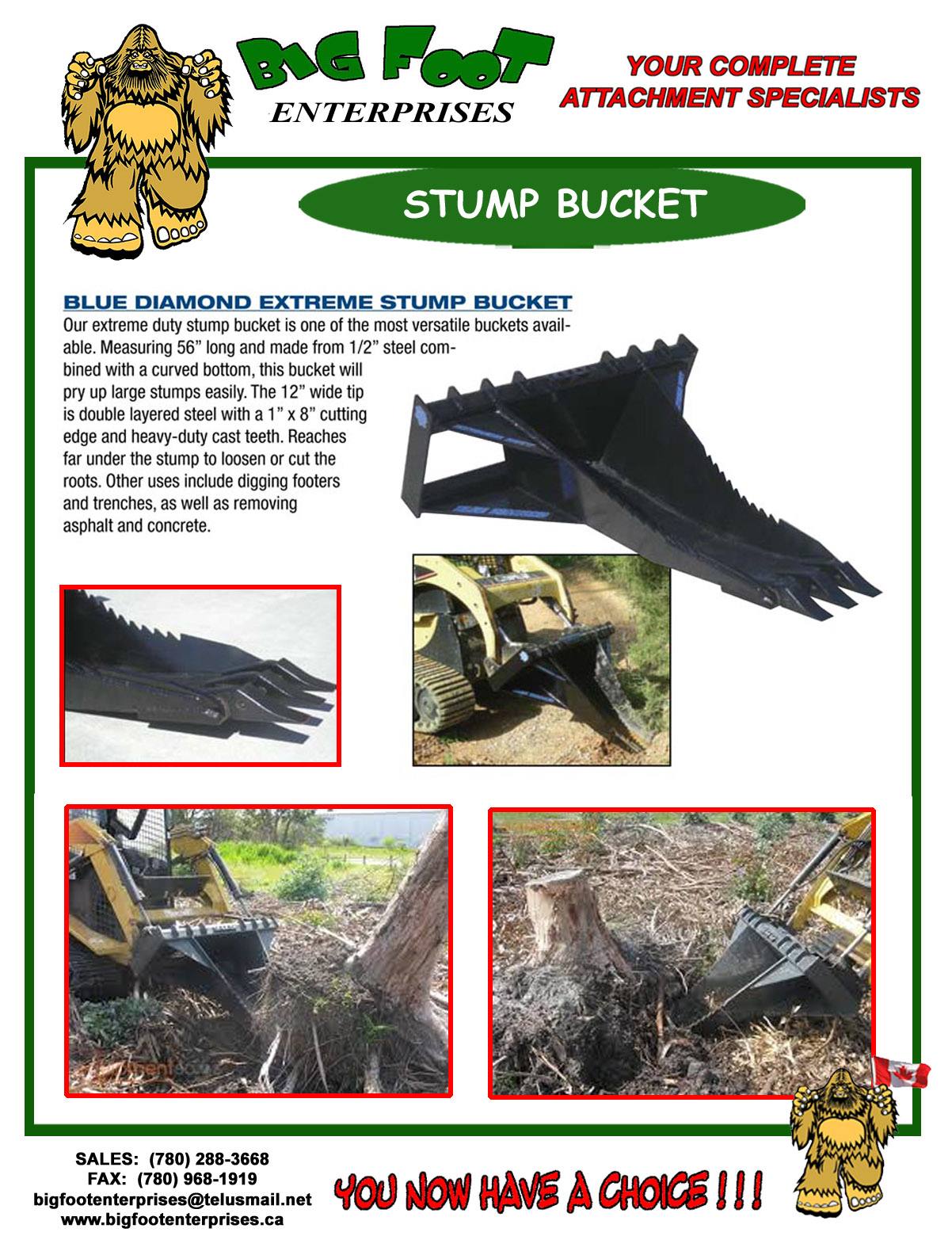

Stump Bucket Brochure

Skidding Winch Pg 1

Skidding Winch Pg 2

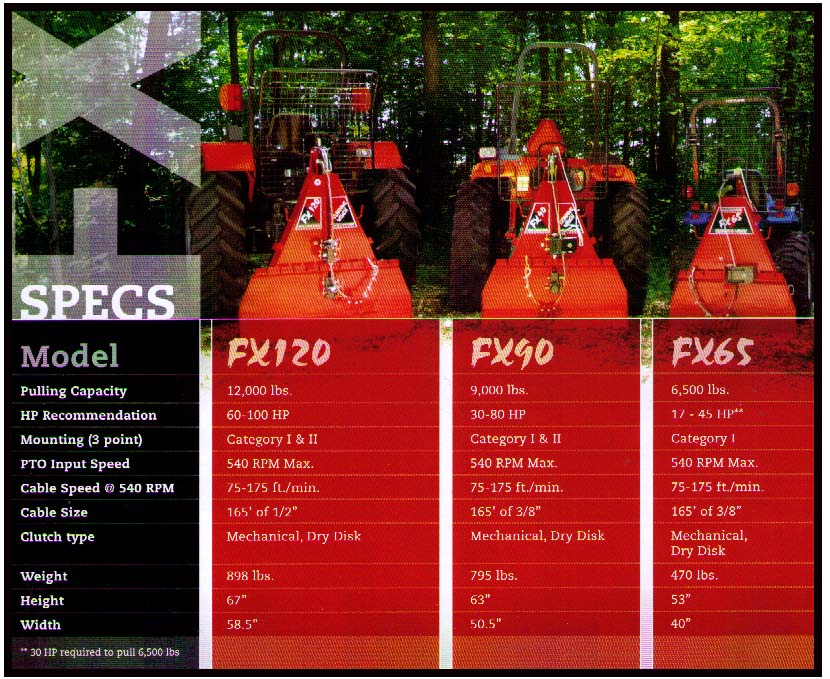

Skidding Winch Specs

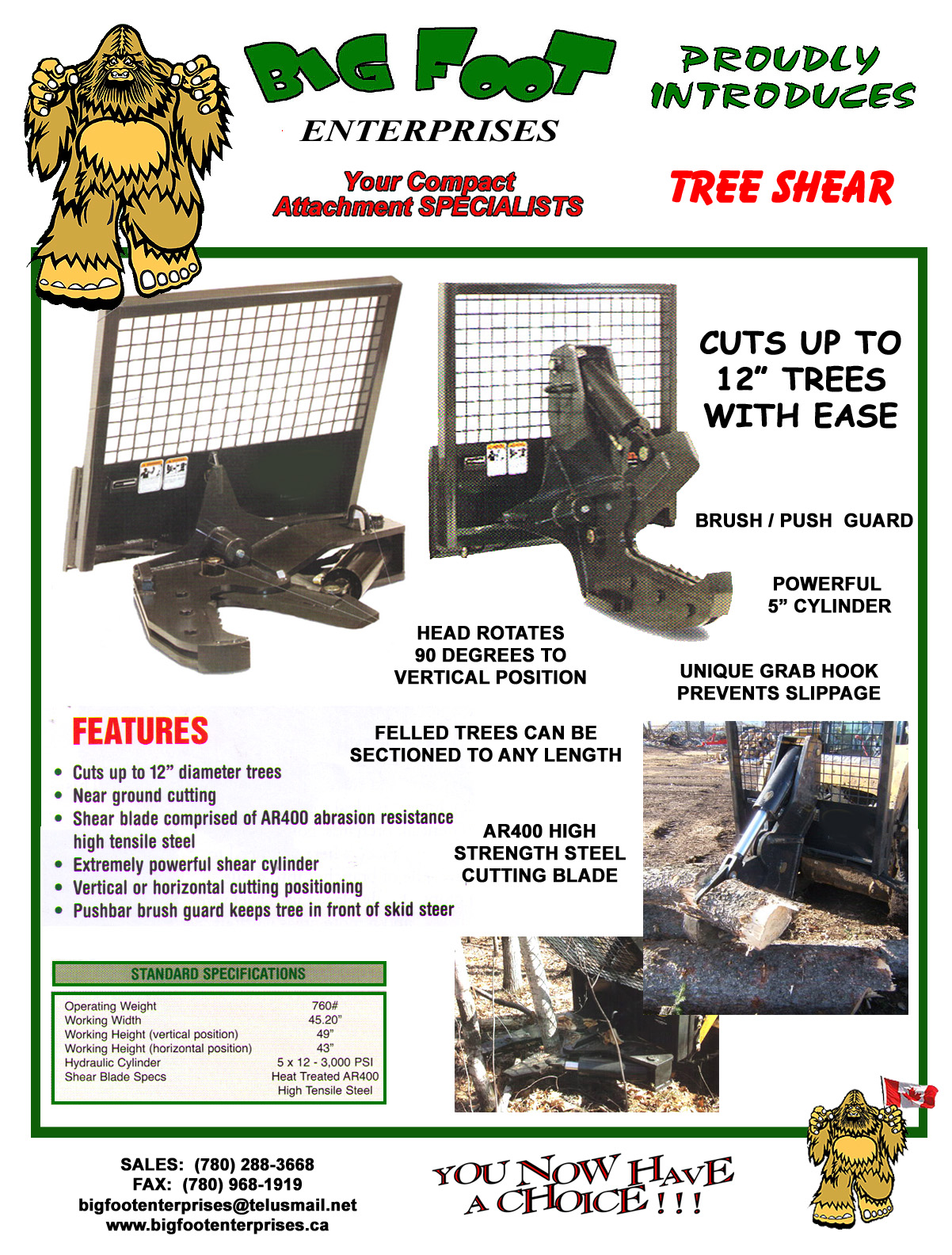

Tree Shear Brochure

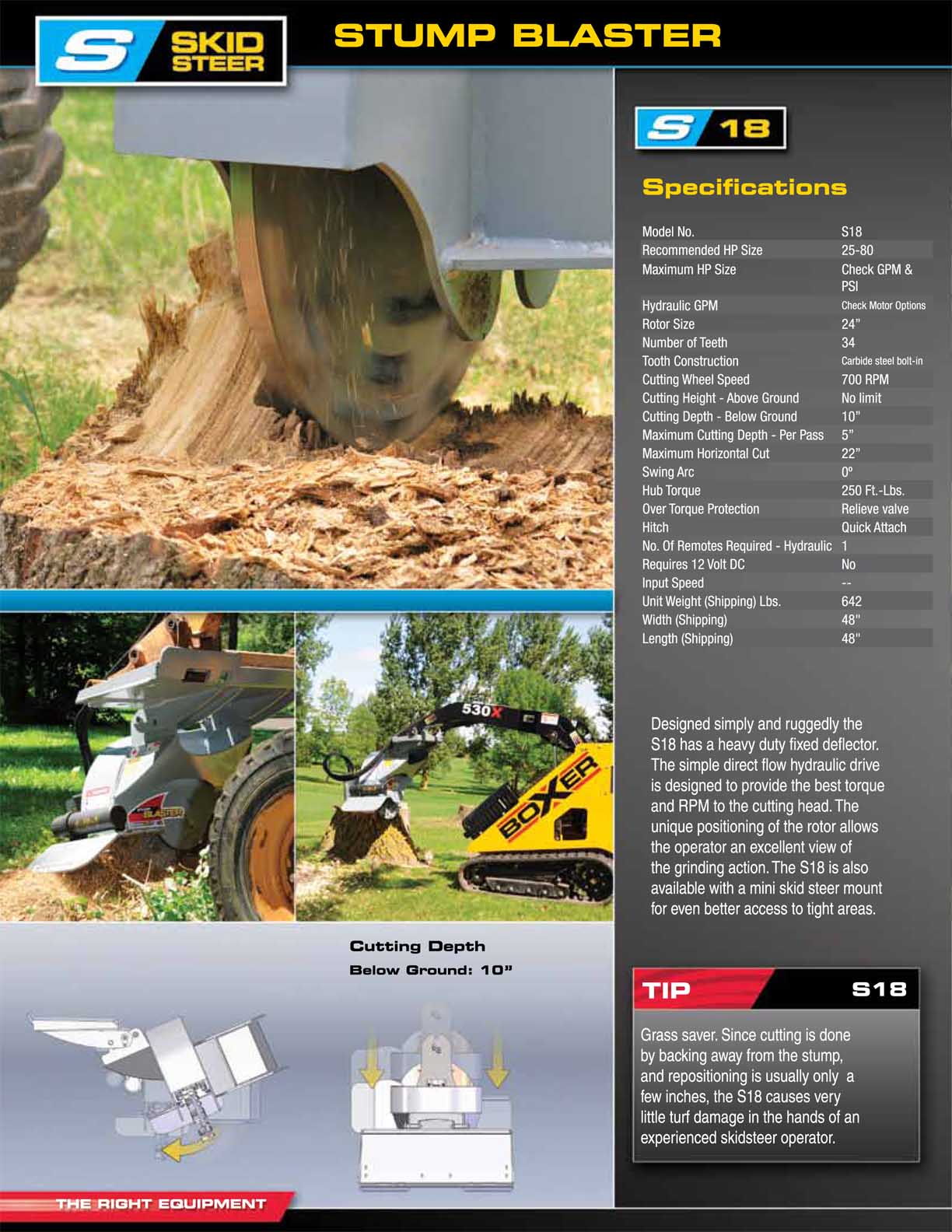

Stump Grinder-Skid Steer-S18

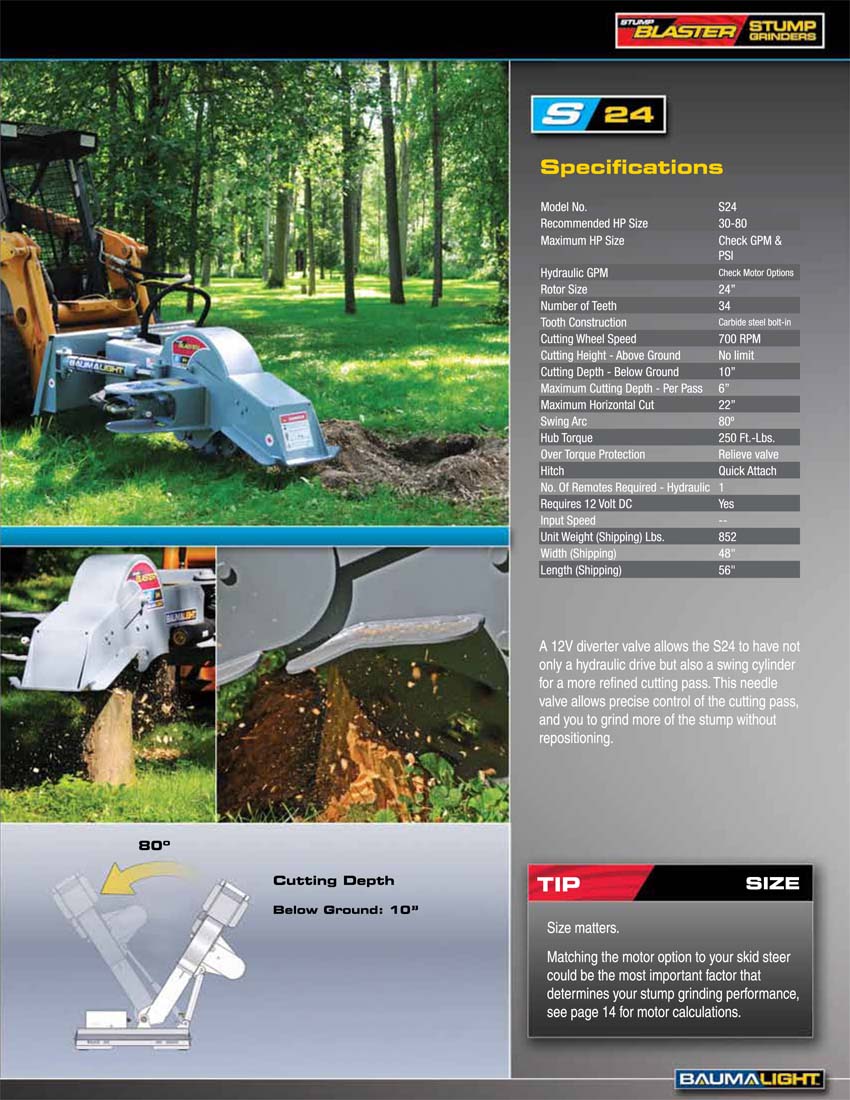

Stump Grinder-Skid Steer-S24

Stump Grinder-Skid Steer-S28

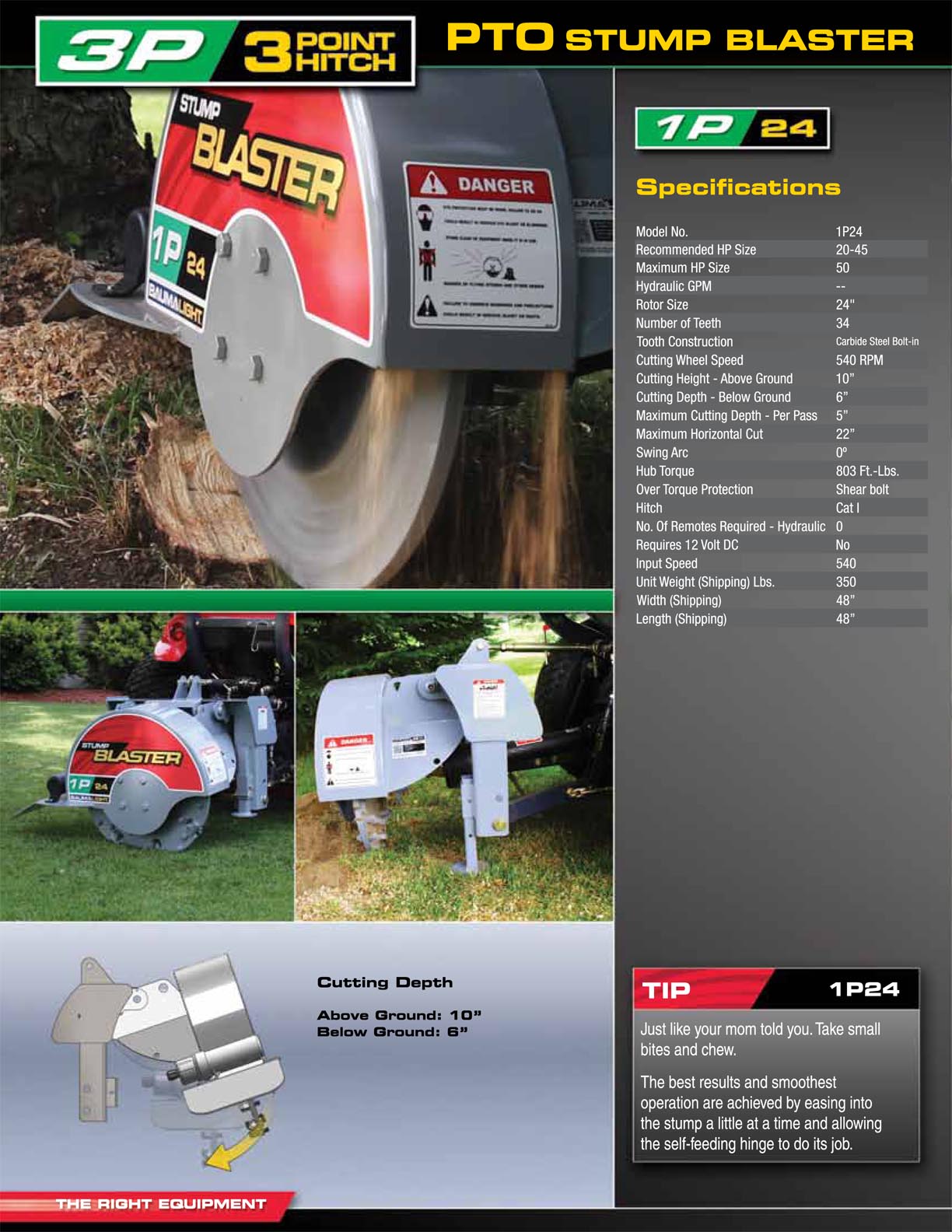

Stump Grinder-Tractor-1P24

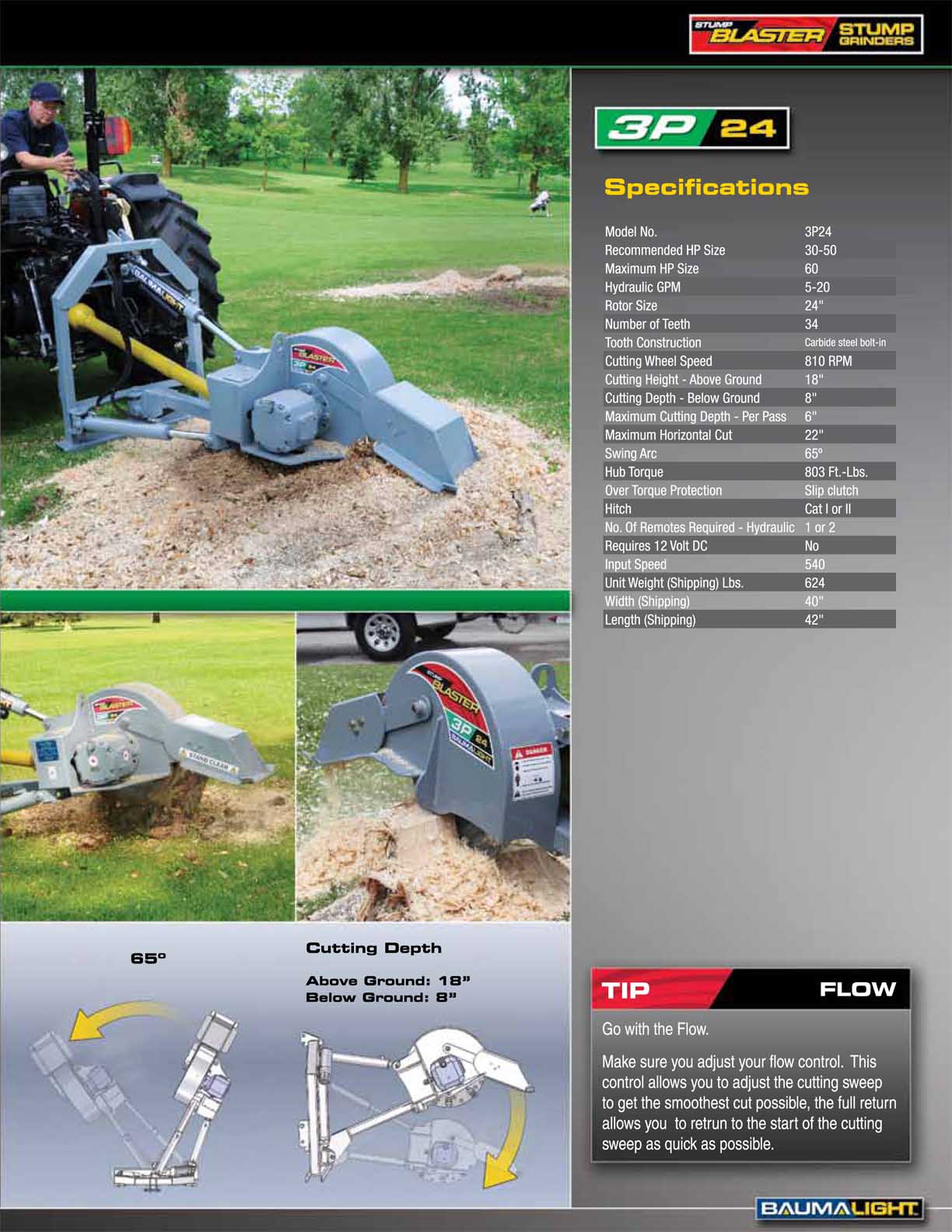

Stump Grinder-Tractor-3P24

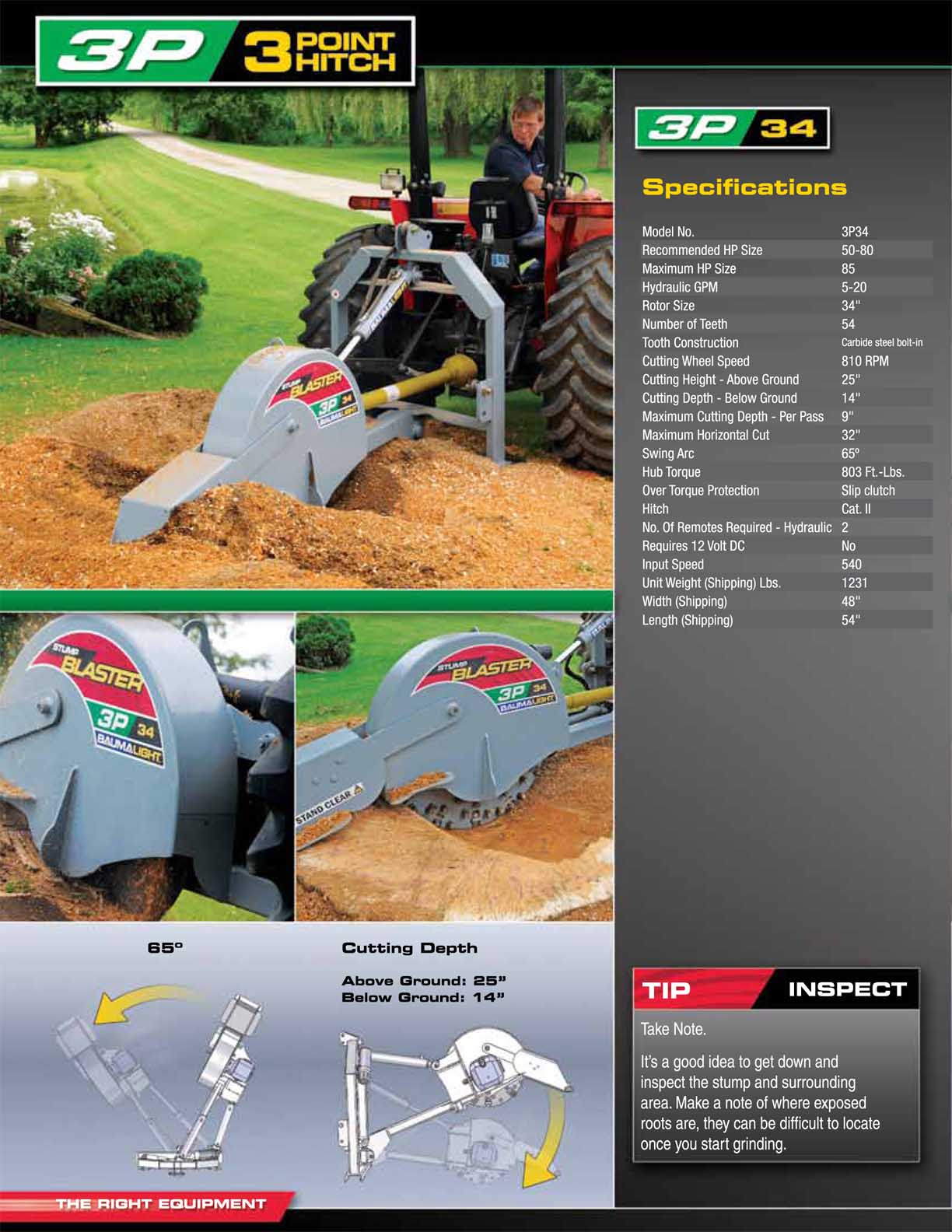

Stump Grinder-Tractor-3P34

Stump Grinder-Tractor-3P40

Tag-A-Long Wood Processor
