WHEEL LOADER ATTACHMENTS

-------------------------------------------------------
IF ANY ITEMS INTEREST YOU, CLICK ON THE PICTURE AND A LARGER VIEW
WILL APPEAR IN A NEW WINDOW

SNOW WING BLADES         CLICK ON PICTURE FOR LARGER VIEW

Video: To See The Wheel Loader Snow Wing Blade In Action, Go To Our Video Page  "Click Here"

WheelLoader/3200W-WingBlade-Loader2.jpg

SB3200W813 On Loader Backhoe

WheelLoader/SB5200W1622-a.jpg

SB5200W1622 For CAT Loader

WheelLoader/6205W-WingBlade.jpg

SB6205W1218 On CASE Loader

WheelLoader/5206W-WingBlade1.jpg

SB5206W1426 Wide Wing Model

WING BLADES ARE THE IDEAL SNOW REMOVAL TOOLS FOR UP TO 60,000 LB WHEEL LOADERS. EASILY CHANGE FROM A WIDE ANGLING BLADE TO
A SNOW PUSHER TO A REVERSE BOX BLADE.   VARIOUS SIZES ARE AVAILABLE TO BEST SUIT ANY OF YOUR NEEDS.
Quick-Attach or Direct Pin Mounts Available For Most Loaders

ALL WING BLADE FEATURE
Rugged Industry Proven Wing Rotators        Individual Wing Adjustment Full 180 Degrees         35 Degree Angle On Moldboard        Lateral Float System
Exclusive Tire Protection On The Wings       Relief Valves On Blade and Both Wings        Spring Trip Cutting Edge        Floating Edge On Each Wing

SB3200W Series:
Max Op Weight: 10,000 Lbs
6 to 10 Ft Main Moldboard Widths
30" High Moldboard
Wings Add 5 Ft To Width

SB4200W Series:
Max Op Weight: 25,000 Lbs
9 to 14 Ft Main Moldboard Widths
34" High Moldboard
Wings Add 6 Ft To Width

SB5200W Series:
Max Op Weight: 40,000 Lbs
9 to 16 Ft Main Moldboard Widths
42" High Moldboard
Wings Add 6 Ft To Width

SB6205W Series:
Max Op Weight: 60,000 Lbs
10 to 20 Ft Main Moldboard Widths
53" High Moldboard
Wings Add 6 Ft To Width

SB4206W Wide Wing
Max Op Weight: 25,000 Lbs
8 To 14 Ft Main Moldboard Widths
34" High Moldboard
Wings Add 12 Ft To Width

SB5206W Wide Wing
Max Op Weight: 40,000 Lbs
9 To 16 Ft Main Moldboard Widths
42" High Moldboard
Wings Add 12 Ft To Width

--------------------------------------------------------------------------------------------------------------------------------------------------------------



HYDRAULIC ANGLING SNOW BLADES         CLICK ON PICTURE FOR LARGER VIEW

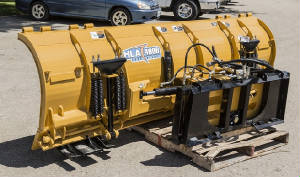

WheelLoader/4000Series-a.jpeg

SB400010   10 Ft Blade

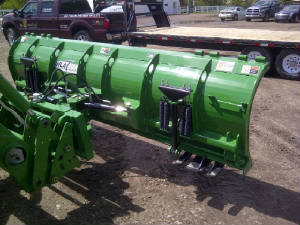

WheelLoader/SB400012-JD-AO600Mount.jpg

SB400012    12 Ft Blade

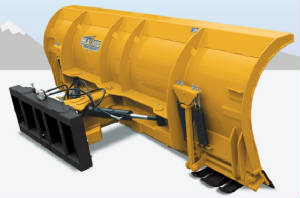

WheelLoader/5000Series-Blade.jpg

SB500014    14 Ft Blade

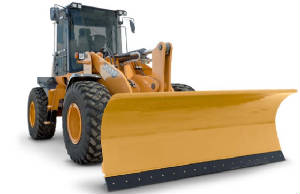

WheelLoader/6000Series.jpg

SB600012    12 Ft Blade

HYDRAULIC ANGLING SNOW BLADES ARE AN EXCELLENT CHOICE FOR SNOW REMOVAL.  VARIOUS MODELS AND SIZES FOR UP TO 60,000 LB WHEEL LOADERS.
Quick-Attach or Direct Pin Mounts Available For Most Loaders

ALL HYDRAULIC SNOW BLADES FEATURE
35 Degree Angle On Moldboard        Lateral Float System           Reversible Cutting Edges           Dual H.D. Angle Cylinders            Relief Valves On Blade        Spring Trip Cutting Edge        Skid Shoes

SB3000 Series:
Max Op Weight: 10,000 Lbs
6 to 10 Ft Main Moldboard Widths
30" High Moldboard
Spring Trip Cutting Edge

SB4000 Series:
Max Op Weight: 25,000 Lbs
9 To 14 Ft Main Moldboard Widths
34" High Moldboard
Spring Trip Cutting Edge

SB5000 Series:
Max Op Weight: 40,000 Lbs
9 To 18 Ft Main Moldboard Widths
42" High Moldboard
Spring Trip Cutting Edge

SB6000 Series:
Max Op Weight: 60,000 Lbs
10 to 20 Ft Main Moldboard Widths
53" High Moldboard
Spring Trip Cutting Edge



--------------------------------------------------------------------------------------------------------------------------------------------------------------



Straight SNOW PUSHER BLADES         CLICK ON PICTURE FOR LARGER VIEW

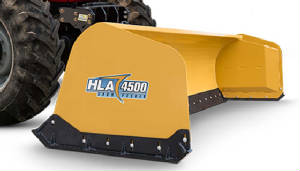

WheelLoader/4500-Pusher.jpg

SP450012   12 Ft Snow Pusher

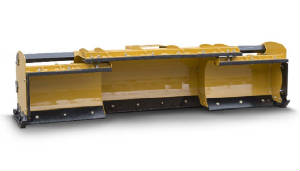

WheelLoader/3500X-Pusher.jpg

SP3500X   Expandable Snow Pusher

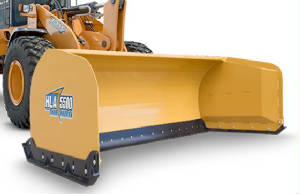

WheelLoader/5500-Pusher.jpg

SP550014    14 Ft Snow Pusher

WheelLoader/RZ4500-Pusher.jpg

RZ450010   10 Ft RAZOR

SNOW PUSH BLADES ARE AN EXCELLENT CHOICE FOR SNOW REMOVAL.  VARIOUS MODELS AND SIZES FOR UP TO 40,000 LB WHEEL LOADERS.
Bucket Mount,  Quick-Attach or Direct Pin Mounts Available For Most Loaders

ALL HYDRAULIC SNOW BLADES FEATURE
Solid Re-Inforced Wings           Reversible Cutting Edges        Spring Trip Cutting Edge       Replaceable Wing Skid Plates         Optional Back Drag

SP3500 Series:
Max Op Weight: 15,000 Lbs
7 To 12 Ft Main Moldboard Widths
38" High Moldboard
Spring Trip Cutting Edge

SP4500 Series:
Max Op Weight: 25,000 Lbs
10 To 14 Ft Main Moldboard Widths
34" High Moldboard
Spring Trip Cutting Edge

SP5500 Series:
Max Op Weight: 40,000 Lbs
12 To 18 Ft Main Moldboard Widths
42" High Moldboard
Spring Trip Cutting Edge

SP3500X  Expandable Series:
Max Op Weight: 15,000 Lbs
6 to 8 Ft Main Moldboard Widths
Expands 4 Additional Feet
30" High Moldboard
Spring Trip Cutting Edges

RZ4500 RAZOR Series:
Max Op Weight: 25,000 Lbs
10 To 16 Ft Main Moldboard Widths
24" Floating Sections
34" High Moldboard
Spring Trip Cutting Edges

RZ6500 RAZOR Series:
Max Op Weight: 60,000 Lbs
12 To 24 Ft Main Moldboard Widths
24" Floating Sections
48" High Moldboard
Spring Trip Cutting Edges

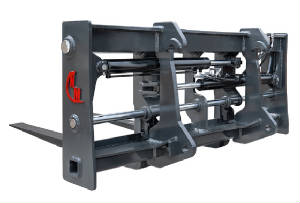

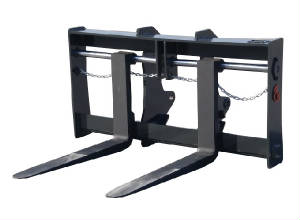

PALLET FORKS
Click On Picture For Larger View

WheelLoader/Loader-Forks.jpg

PIPE/POLE GRAPPLES
Click On Picture For Larger View

WheelLoader/Loader-PipeGrapple.jpg

TELESCOPIC BOOMPOLE
Click On Picture For Larger View

WheelLoader/Loader-BoomPole.jpg

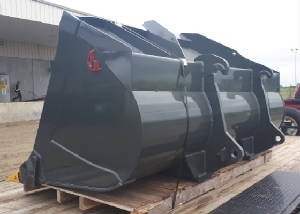

BUCKETS
Click On Picture For Larger View

WheelLoader/Loader-BucketsGP.jpg


SCRAP GRAPPLES
Click On Picture For Larger View

WheelLoader/Loader-ScrapGrapple.jpg

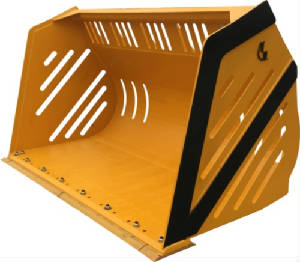

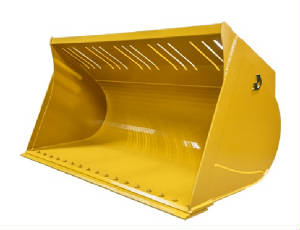

HIGH VOLUME BUCKETS
Click On Picture For Larger View

WheelLoader/Loader-Buckets-Snow.jpg

SPECIALTY BUCKETS
Click On Picture For Larger View

WheelLoader/Loader-Buckets-Specialty.jpg

GARBAGE GRAPPLES
Click On Picture For Larger View

WheelLoader/Loader-GarbageGrapple.jpg
