MINI ATTACHMENTS

MiniAttachments/Mini-Collage.jpg

YOUR MINI SKID STEER NOW HAS MORE OPTIONS TO FULLY UTILIZE ITS CAPABILITIES
MOST ITEMS AVAILABLE FOR THE FOLLOWING MOUNTS
BOBCAT: MT52/MT55, 463, S70       ASV/TEREX:  PT30/RC30
TORO DINGO / VERMEER / BOXER / DITCHWITCH / RAMROD / THOMAS
-------------------------------------------------------

Click On Any Picture For Larger View

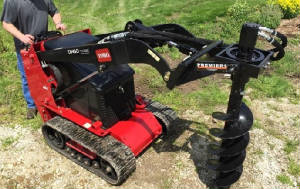

Auger Drive

MiniAttachments/Mini-2a.jpg

7 - 15 GPM
2" Hex Drive
Direct Drive
4-Way Pivot

Angle Broom

MiniAttachments/AngleBroom2.jpg

7 - 15 GPM
48" Working Width
Manual or Hyd. Angle
24" Brushes
Direct Drive-No Chains
Wire Harness or Toggle Switch
Control For Hydraulic Model

Pickup Broom

MiniAttachments/PickupBroom.jpg

7 - 15 GPM
Direct Drive Motor
48" Working Width
57" Overall Width
24" Diameter Brushers
Rubber Shields

Buckets

MiniAttachments/Bucket-Mini.jpg

42" & 48" Widths
Smooth or Tooth
16" Height
Bobcat / ASV Mounts



Pallet Forks

MiniAttachments/PalletForks-900Lb.jpg

900 Lb Capacity
Sliding Lockable 42" Tines
50" Wide Carriage
Weight: 165 Lbs
Carry More Material
Bobcat / ASV / Ramrod Mounts

Rod Bucket

MiniAttachments/RodBucket.jpg

49.75" Width
HD 1/2" Rods
2.75" Spacing
4 Pin On Teeth
1/2" x 4" Cutting Edge

Rod Bucket Grapple

MiniAttachments/GrappleRodBucket2.jpg

49.75" Width
Same Specs As Rod Bucket
Dual Grapples
27" Grapple Opening

Grapple Rake

MiniAttachments/Grapple-Mini2.jpg

48.5" Width
6.38" Tooth Width
Teeth Are 1/2" Steel
36" Grapple Opening



Snow Blower

MiniAttachments/SnowBlower2.jpg

53" Cut Width     10 - 14 GPM
Throws Up To 25 Ft
Hyd Driven Gearbox
Hydraulic Relief
Wire Harness Or Toggle Switch
Control  For Chute Functions

Snow Blade

MiniAttachments/SnowBlade.jpg

Manual Or Hyd Angle
Lockable Moldboard
49.5" Width
44" Angled Width
Spring Trip Moldboard
Adjustable Skid Shoes

Snow Blade

MiniAttachments/SnowBlade-1000Series.jpg

Manual Or Hyd Angle
42" To 78" Widths
35 Degree Angle
Spring Trip 20" High Moldboard
Adjustable Skid Shoes

Snow V-Blade

MiniAttachments/v-blade.jpg

48" - 54" - 60" Widths
24" High Moldboard
Blade Flotation
App Weight: 420 Lbs
Bobcat, ASV or Ramrod Mounts

              ----------------------------
Click On Any Picture For Larger View
              ----------------------------



HD Brush Mower

MiniAttachments/Mower2.jpg

Cut Up To 2" Material
7 - 15 GPM
43.75" Cut Width
48.25" Overal Width
Gear Box Driven
Hyd. Pressure Relief

VIDEO:
To See The Mini Mower In Action,
Go To Our Video Page

Mini Auger Bucket

MiniAttachments/minibucket_0.jpg

Multi Purpose Bucket
Self Loading From Piles
Left or Right Discharge
Only 36" Wide
Weight:  200 Lbs
4.6 Cu. Ft. Capacity

Utility Grapple

MiniAttachments/UtilityGrapple.jpg

42 or 48" Widths
37.5" Grapple Opening
Single Center Cylinder
32" Kverneland Tines
Bobcat / ASV / Ramrod Mounts

Soil Conditioner

MiniAttachments/SoilConditioner2.jpg

Manual or Hydraulic Angle
48" Working Width
9 - 15 GPM   2.5" Working Depth
Direct Drive - No Chains
Floating Mount System
Wire Harness Or Toggle Switch
Control For Hydraulic Model



6-Way Dozer Blade

MiniAttachments/Dozer2.jpg

49.5" Working Width
Side & Tilt Angling
Adjustable Skid Shoes
Bolt On Cutting Edge
Wire Harness or Toggle Switch
Control For Tilting Function

Rototiller

MiniAttachments/MiniRototiller.jpg

50.5" Overall Width
37" Tilling Width
0" - 4" Tilling Depth
Bi-Directional
Direct Drive Motor
7 - 14 gpm

Trencher

MiniAttachments/Trencher2.jpg

7 - 15 GPM
38" Dig Depth
Direct Drive
Trench Cleaner
Spoil Auger

Concrete Breaker

MiniAttachments/Breaker1.jpg

6 - 11 GPM
550-950 Blow Rate
Only 2 Moving Parts
One Grease Fitting
